Key Cylinder Lamp: Service and Repair

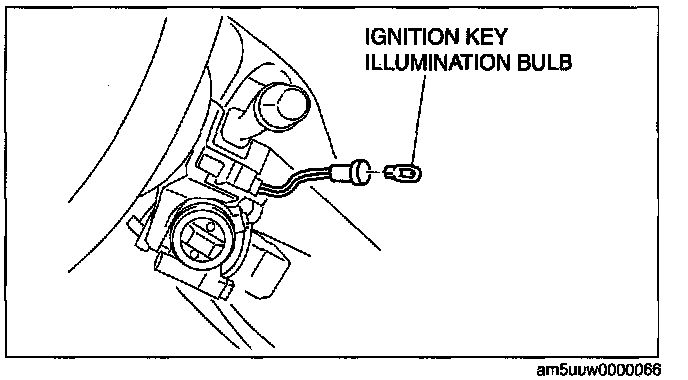

IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the lower column cover.
4.
Remove the ignition key illumination bulb.
5.
Install in the reverse order of removal.
