Tail Lamp: Service and Repair

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Rear package tray lid.
2. Sub-trunk
3. Third-row seat.
4. Rear scuff plate.
5. Trunk end trim.
6. Third-row seat belt lower anchor installation bolt.
7. Cargo compartment light.
8. Trunk side trim.

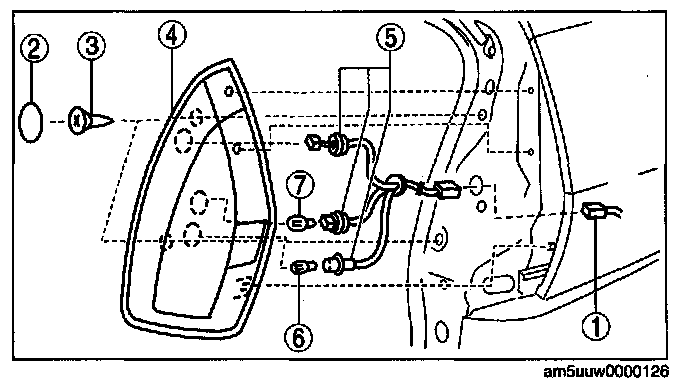

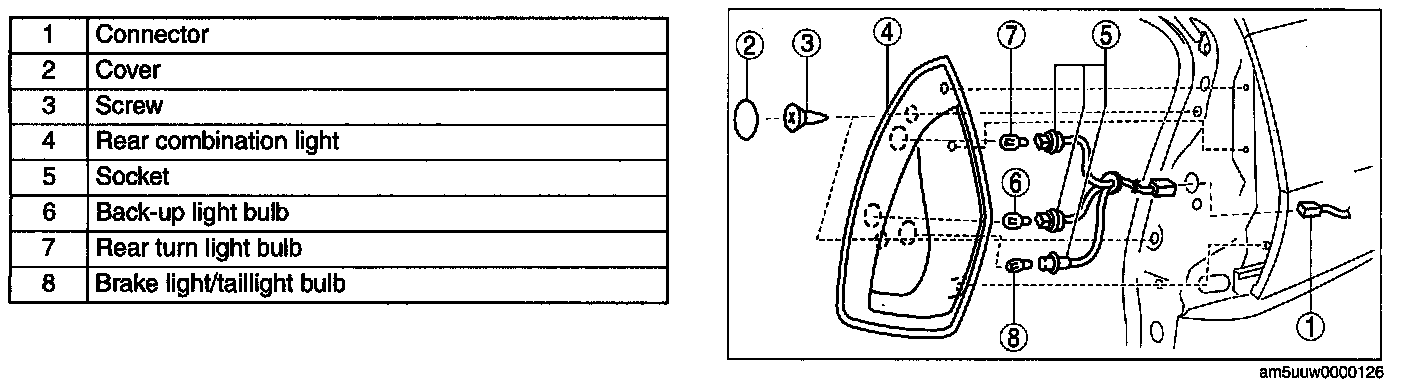

4. Remove in the order indicated in the table.

LED Type:





Light Bulb Type:






5. Install in the reverse order of removal.
