Curtain Air Bag Module

CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION

WARNING: Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1. Turn the ignition switch to the LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable and wait for 1 min or more.
4. Remove the following parts:
1. A-pillar trim.
2. Front scuff plate inner.
3. Rear scuff plate.
4. B-pillar lower trim.
5. Front seat belt upper anchor installation note.
6. B-pillar upper trim.
7. Rear package tray lid.
8. Third-row seat.
9. Rear header trim.
10. Trunk end trim.
11. Third-row seat belt lower anchor installation note.
12. Cargo compartment light.
13. Trunk side trim.
14. Second-row seat belt upper anchor installation note.
15. C-pillar trim.
16. Map light.
17. Sunvisor.
18. Assist handle.
19. Headliner.
20. Rear speaker.

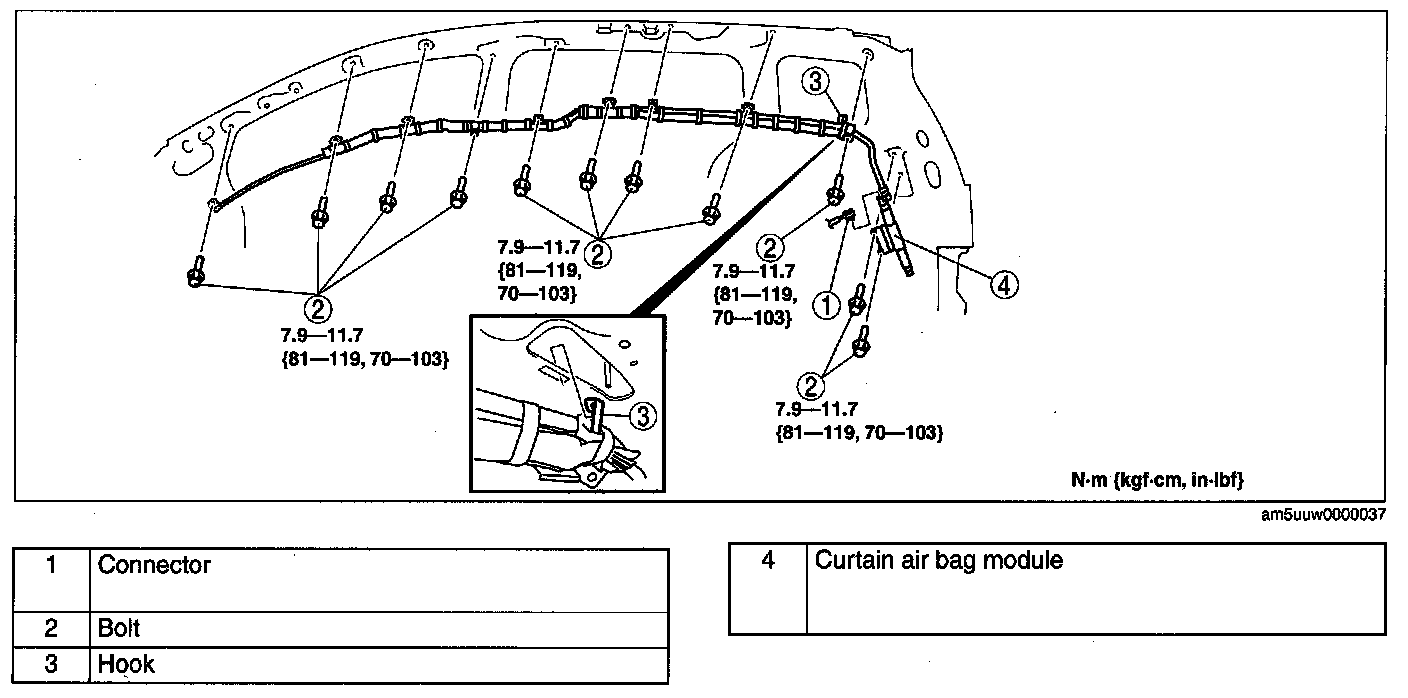

5. Remove in the order indicated in the table.






6. Install in the reverse order of removal.
7. When the ignition switch is turned to the ON position verify that the air bag system warning light illuminates for approx. 6 s and then goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system.

Connector Removal Note




1. Using flathead screwdriver, pry out the connector stopper plate.
2. Disconnect the connector.

Curtain Air Bag Module Installation Note




1. Affix the double-sided adhesive tape for the curtain air bag module to the position shown in the figure.
