Alternator
Alternator Specification Generator standard voltage [IG-ON]

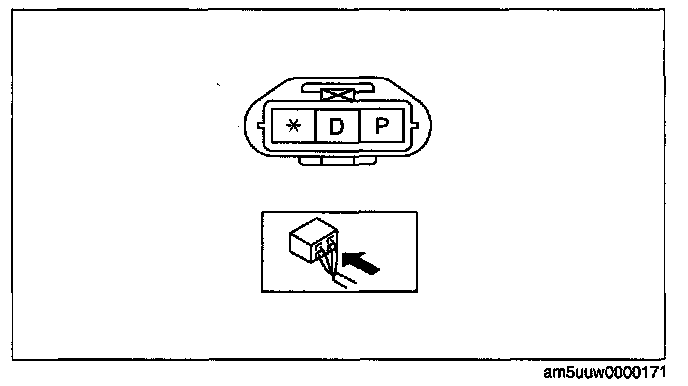

Terminal B: B+
Terminal P: Approx.
1 V or less
Terminal D: Approx.
0 V Generator standard voltage [Idle,
20 °C {68 °F}]
Terminal B:
13-15 V Terminal P: Approx.
3-8 V Generator generated current minimum value
70% of the nominal output current (nominal output current:
110 A)
[Ambient temp.
20 °C {68 °F}, voltage
13.0-15.0 V, both engine and generator are hot]
