Rear Wheel Alignment

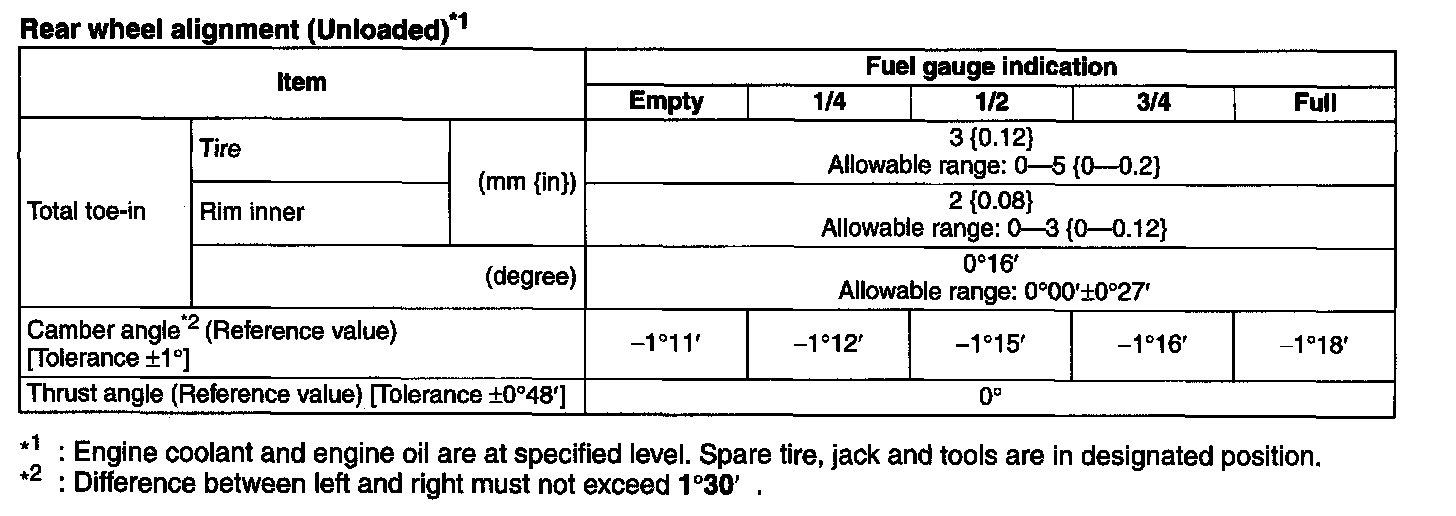

Rear wheel alignment (Unloaded)

*1 : Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2 : Difference between left and right must not exceed 1°30'.

Ride Height

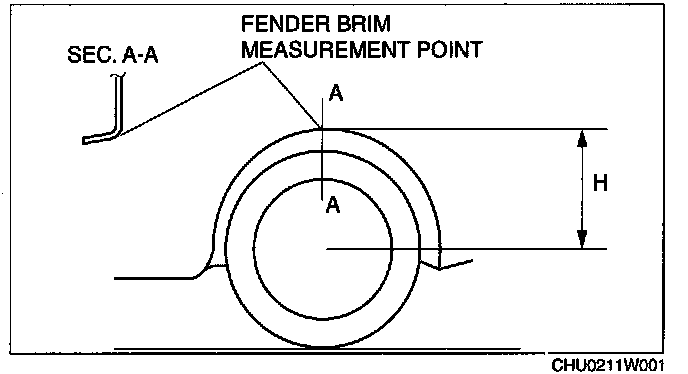

Measure height H from the center of the wheel to the fender brim.
Verify that the difference between the left and right dimension H is within the specification.

Standard 10 mm (0.39 in) or less
