Battery: Specifications
Battery Specifications Battery electrolyte specific gravity
[20 °C (68 °F)]
1.22-1.29Standard Specification:

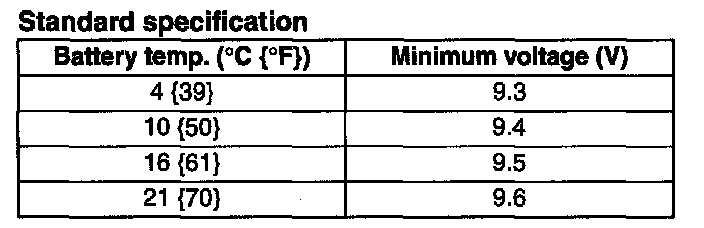

Battery load test current
55D23L (48):
180 A 80D26L (55):
195 A Battery back-up current (When the
ignition switch is off, the ignition key is removed, and all doors are closed.)
Vehicles with immobilizer system:
25-45 mA Vehicles without immobilizer system:
30 mA or less
