Steering Angle Sensor: Testing and Inspection

STEERING ANGLE SENSOR INSPECTION
1. Remove the meter hood.
2. Remove the column cover.
3. Remove the steering angle sensor connector.
4. Connect the battery position to terminal A and ground to terminal D of the steering angle sensor.

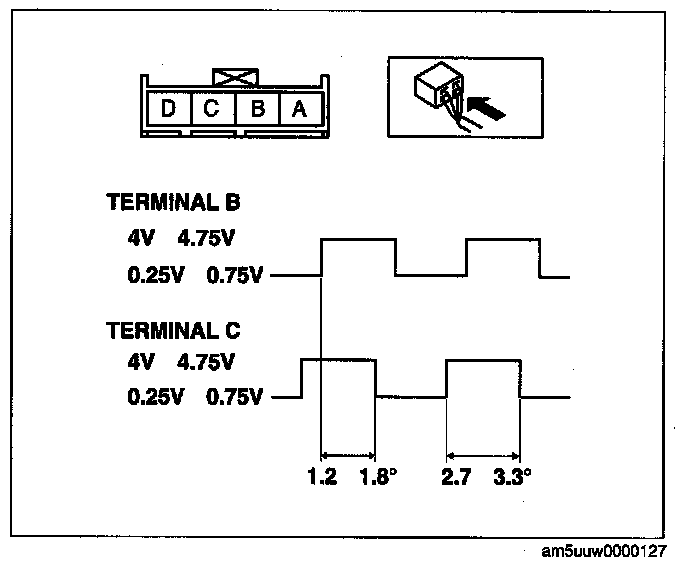

5. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.
- If not as specified, replace the steering angle sensor.
