Selector Lever Inspection
SELECTOR LEVER INSPECTION 1.
Turn the ignition switch to the ON position (engine OFF
2.

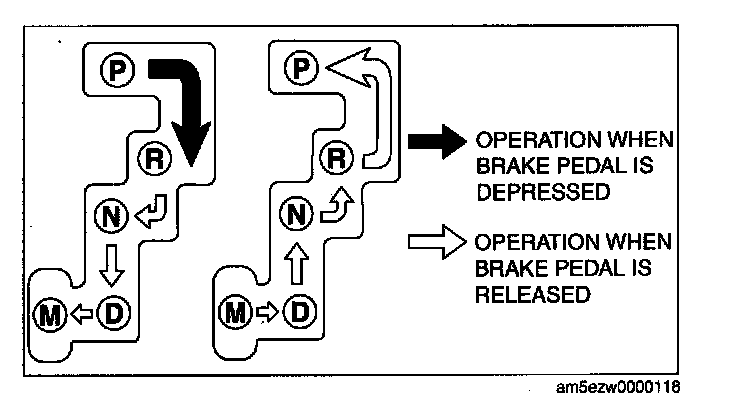

Verify that the selector lever can be shifted as shown in the figure.
3.

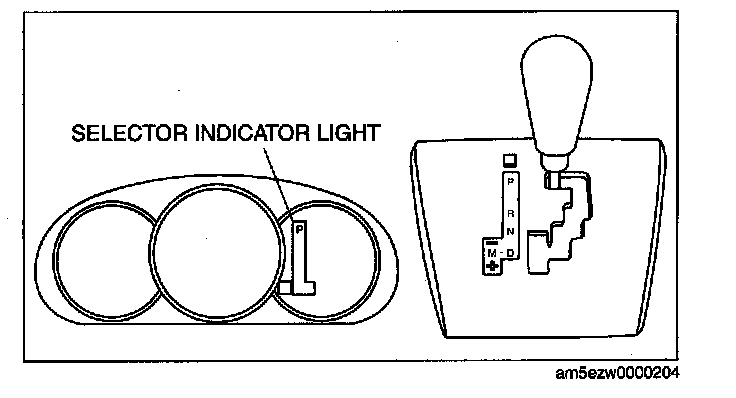

Verify that the positions of the selector lever and the indicator are aligned.
^
If there is any malfunction, adjust the selector cable and TR switch.
4.
Verify that the vehicle operates in each selected range.
