Door Sensor/Switch (For Alarm): Service and Repair

REQUEST SWITCH REMOVAL/INSTALLATION

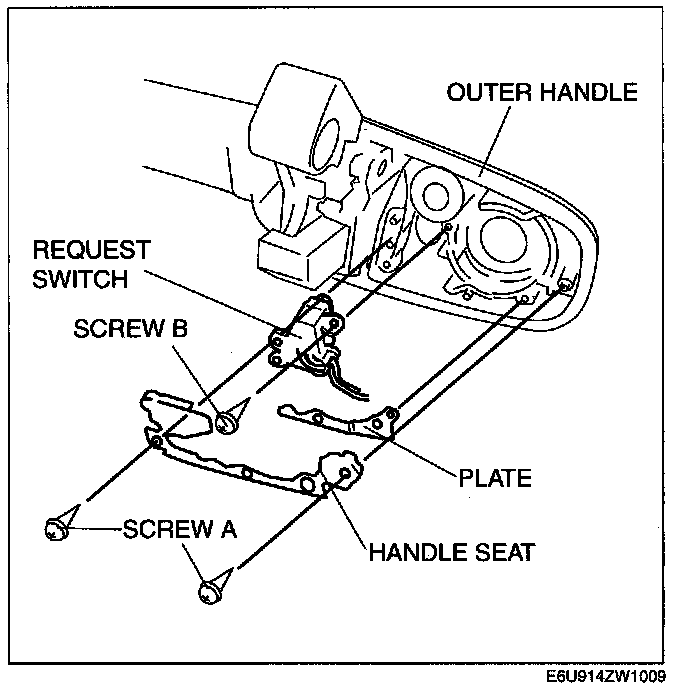

Driver-side/passenger-side

1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Remove the front outer handle.
4. Remove the screws A, then remove the handle seat and plate.

5. Remove screw B, then remove the request switch.

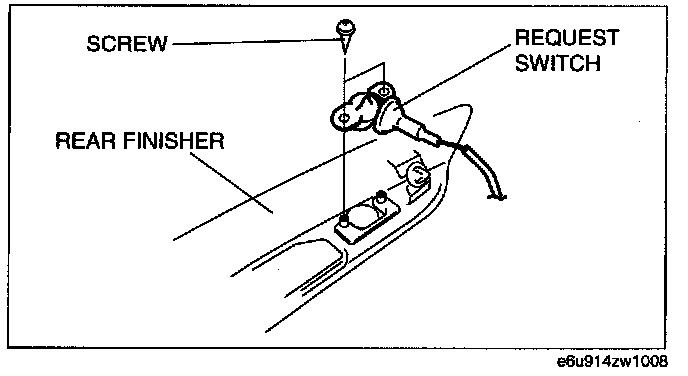

Trunk Lid

1. Disconnect the negative battery cable.
2. Remove the rear finisher.

3. Remove the screws, then remove the request switch.
