Procedures

SECURITY ACCESS PROCEDURE

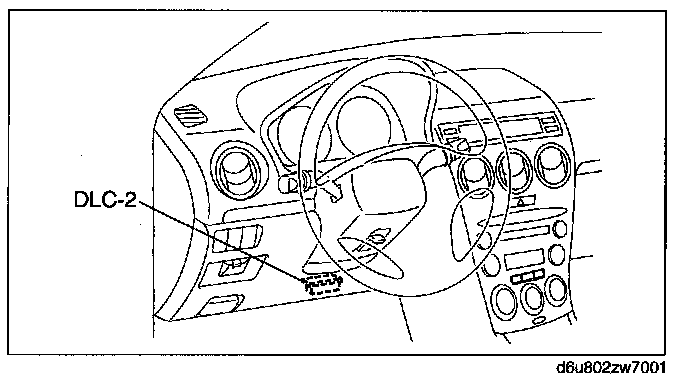

1. Connect the M-MDS to the DLC-2.
2. Select "BODY/SECURITY/PATS (immobilizer) function" from the M-MDS screen menu.
3. Select the items to be performed from the following:

- Additional card key programming
- Card key ID number clearing
- Steering lock unit programming
- Ignition key additional programming (with immobilizer system)
- Ignition key ID number clearing (with immobilizer system)
- Customer spare key programming enable (with immobilizer system)
- Customer spare key programming disable (with immobilizer system)

4. The security access begins and the M-MDS displays the "OUT-CODE".

NOTE
- When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times will change the "OUT-CODE".

5. Input "IN-CODE" corresponding to "OUT-CODE" displayed on the M-MDS screen.
6. If the security access is successful, selected item can be performed.
