Initial Inspection and Diagnostic Overview

REFERENCE INFORMATION [CAR-NAVIGATION SYSTEM]

Starting Procedure For Diagnostic Function

1. Turn the ignition switch to the ACC or ON position.
2. Press the MENU button.
3. Select "Navigation Set Up".
4. Select "Calibration".
5. Select "Map Version".
6. Press the joystick up two times, then down two times.

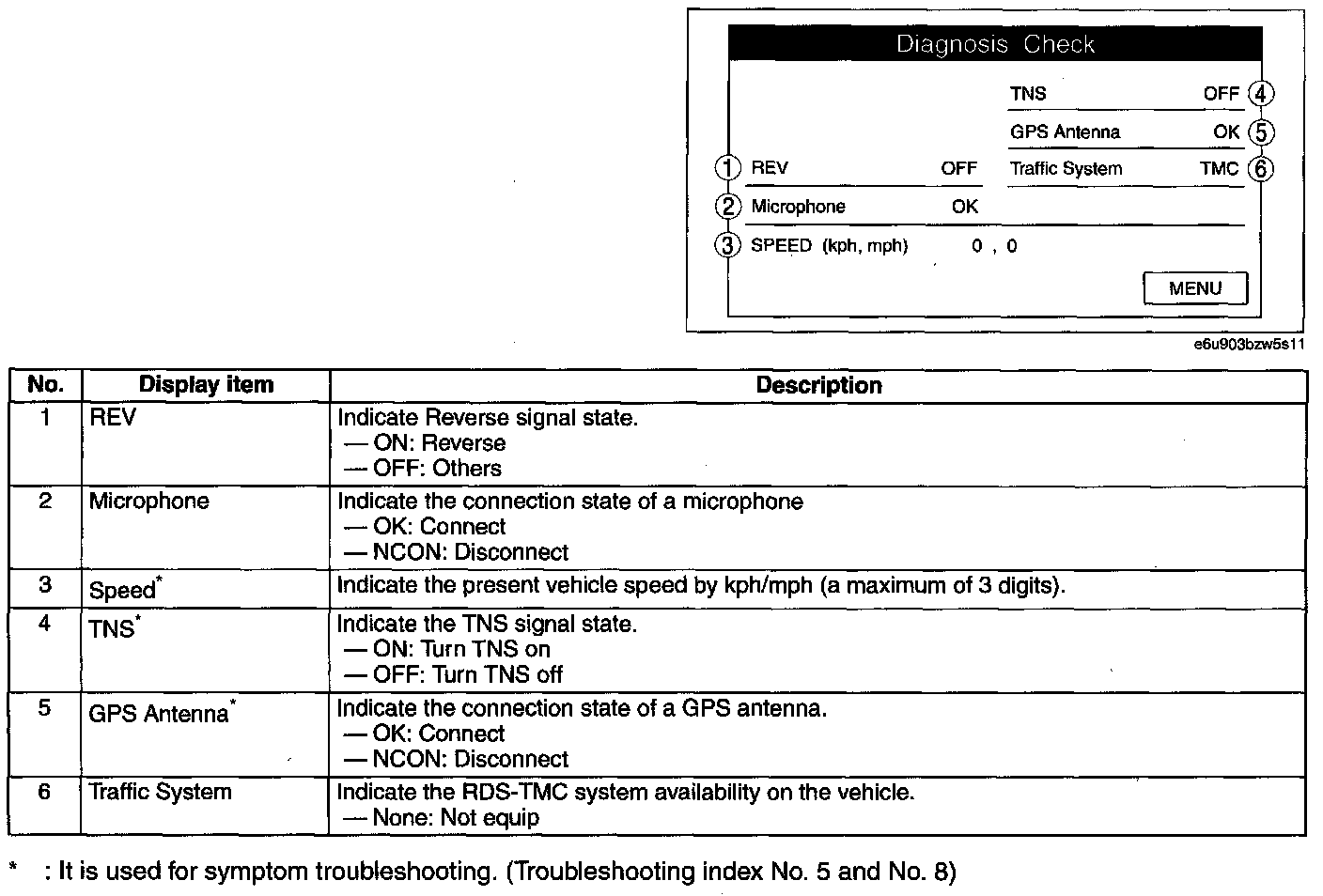

7. "Diagnosis Check" is displayed on the screen.

Finishing Procedure For Diagnostic Function

1. Turn the ignition switch to the LOCK position.
2. Turn the ignition switch to the ACC or ON position.
3. Return to the normal screen.
