Body Control Systems: Description and Operation

MULTIPLEX COMMUNICATION SYSTEM MULTIPLEX COMMUNICATION SYSTEM (L3, AJ)]

Outline
- If the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules, using the M-MDS to determine the malfunctioning system.

- PCM
- ABS/TCSHUICM
- TCM
- Instrument cluster
- TPMS control module

Flowchart

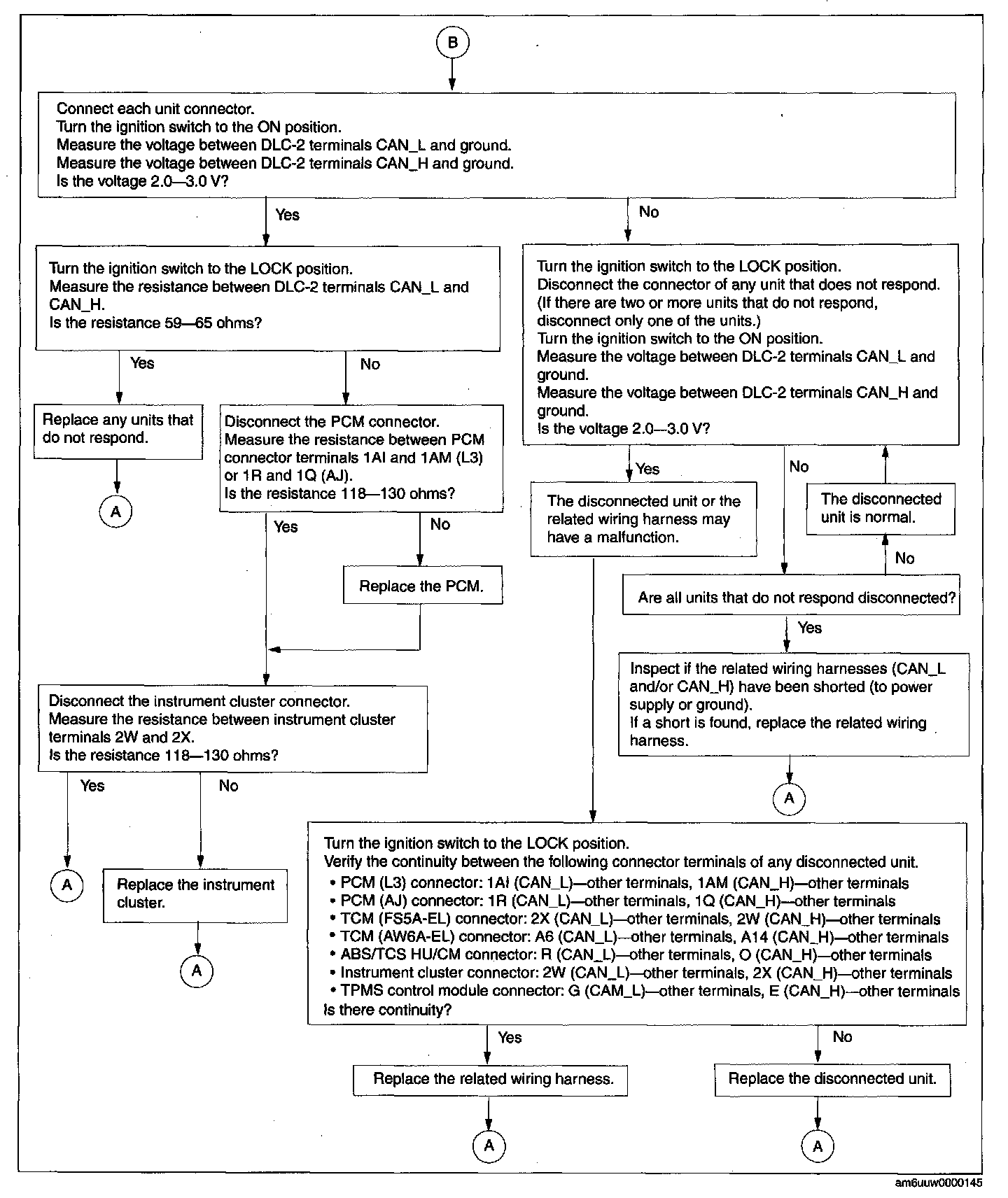

- Use the following flowchart to verify the cause of the trouble.
