Overhaul

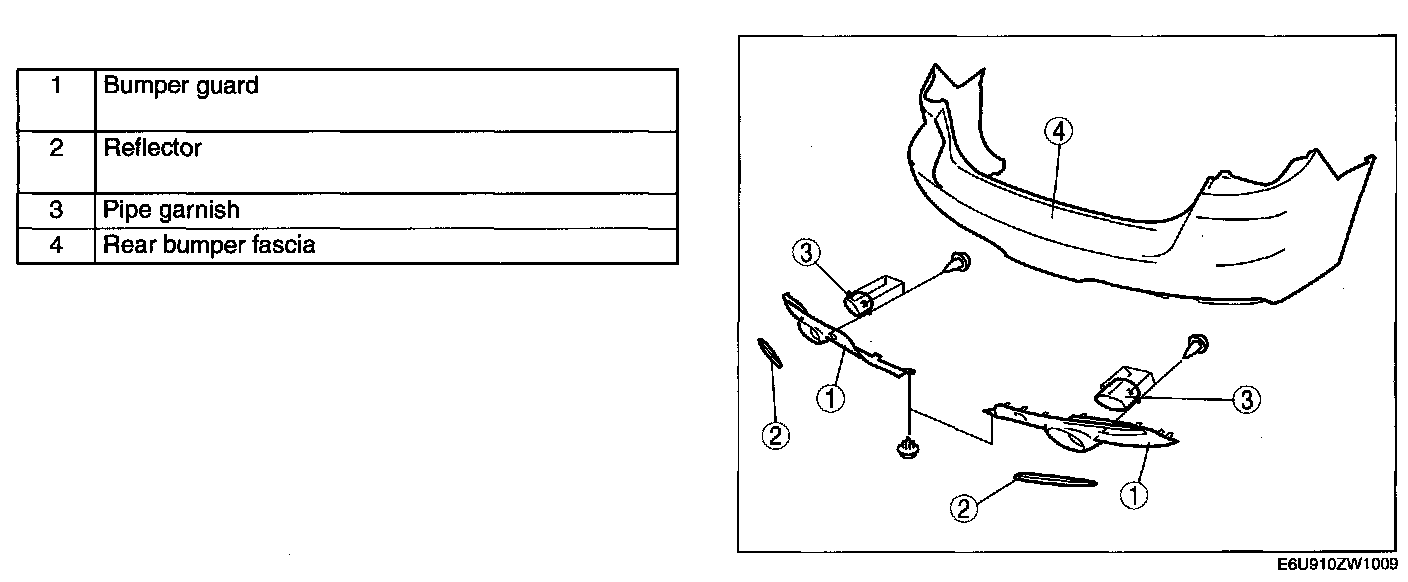

REAR BUMPER DISASSEMBLY/ASSEMBLY [L3 WITH TC] 1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.

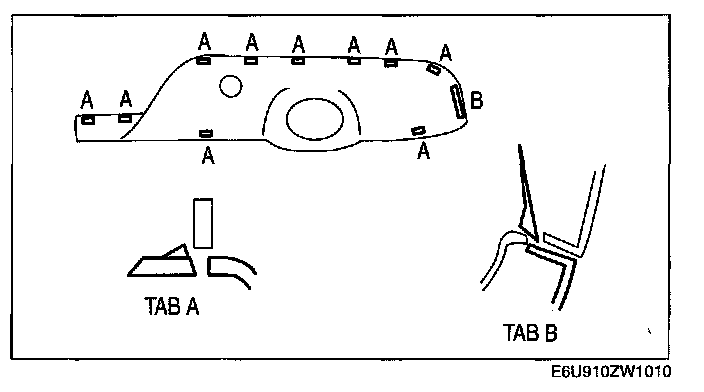

Bumper Guard Removal Note 1.
Detach tabs C and remove the
bumper guard.

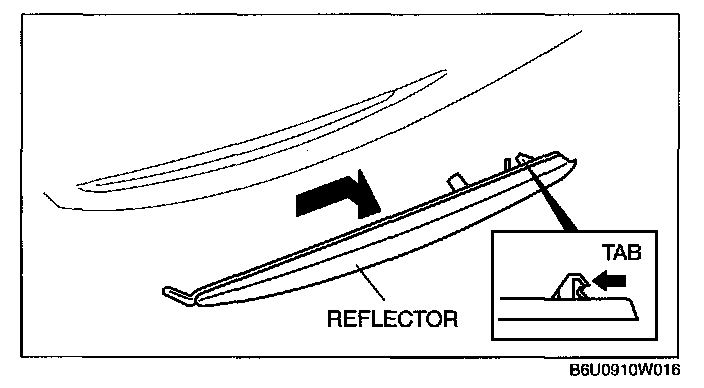

Reflector Removal Note 1.
Lift the reflector up in the direction of the arrow, then unhook it from the rear
bumper.
