Console Removal/Installation

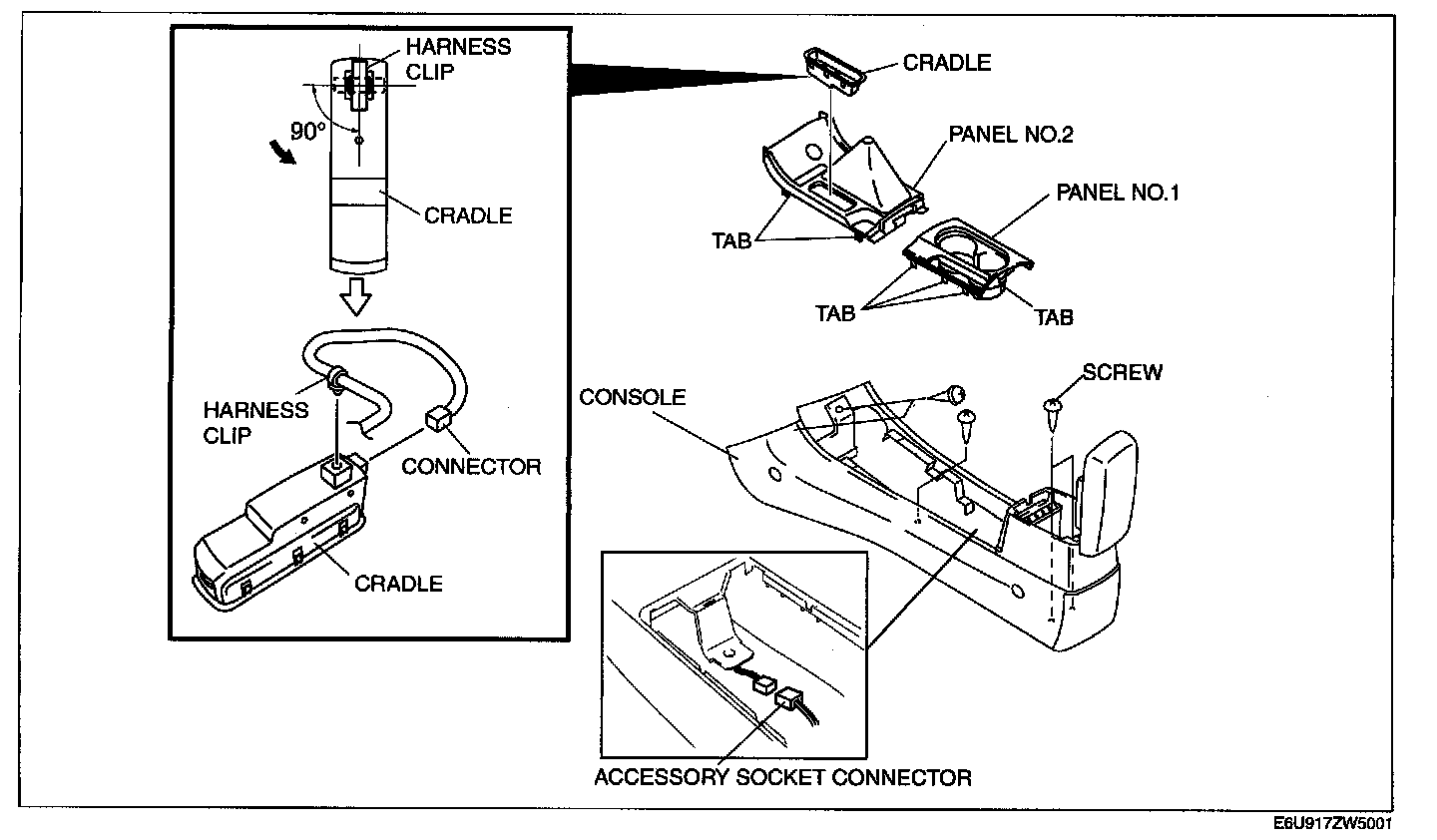

CONSOLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. For manual trans. vehicle, remove the shift lever knob.
3. Remove the panel No.1 using a tape-wrapped screwdriver.






4. Remove the panel No.2 using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination.
5. Rotate the wiring harness clip installed on the cradle 90° in the direction indicated by the arrow in the figure and pull it out. (with car-navigation system)
6. Disconnect the cradle connector.
7. Remove the screws.
8. Remove the seat warmer switch.
9. Disconnect the accessory socket connector.
10. Remove the console.
11. Install in the reverse order of removal.
