Front Door

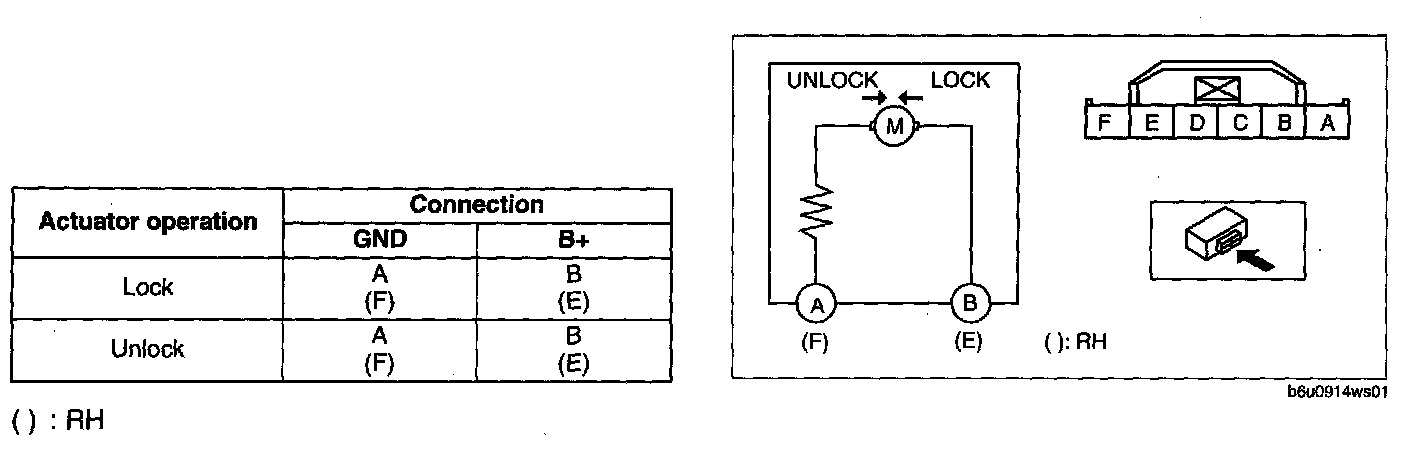

FRONT DOOR LOCK ACTUATOR INSPECTIONDoor Lock Actuator 1.
Disconnect the front door lock actuator connector.
2.
Apply battery positive voltage. to the front door lock actuator terminals and inspect the front door lock actuator operation.
-
If not as specified, replace the front door lock actuator.
