Door Lock-Link Switch (With Theft-Deterrent System)
Door Lock-link Switch (With Theft-deterrent System) 1.
Disconnect the rear door lock actuator connector.
2.

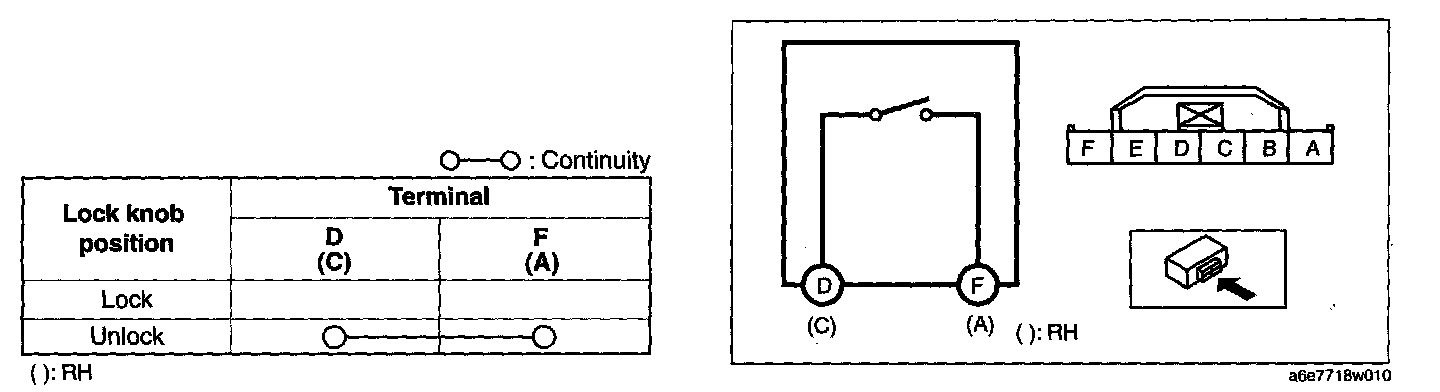

Inspect for continuity between the door lock-link switch terminals using an ohmmeter.
-
If not as specified, replace the rear door lock actuator.
