Customized Function Setting Procedure

CUSTOMIZED FUNCTION SETTING PROCEDURE

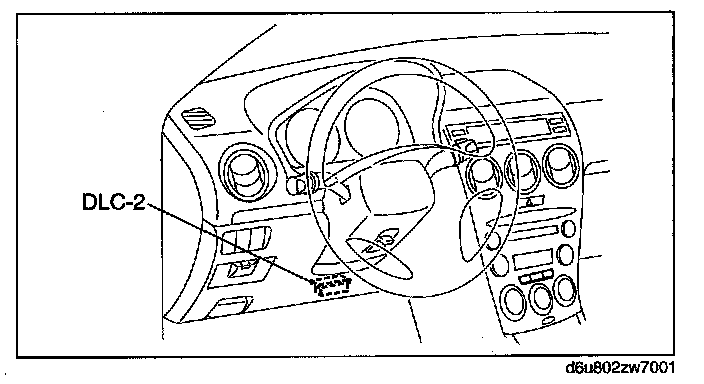

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)
1. Select "Module programming".

- When using the PDS (Pocket PC)
1. Select "Programming".
2. Select "Module programming".

3. Then, select items from the screen menu in the following order.
1. Select "Programmable Parameters".
2. Select "RKE".

4. Select the item name, and than select either "Disable/Enable".

Items
- Automatic Lock
- Answer Back Buzzer
- Card Key Carrying Out Alarm
- Low Battery Warning
