Output Device Operation Check Mode

Output Device Operation Check Mode

Inspection

1. Warm up the engine.
2. Turn the ignition switch to LOCK position.
3. Start up the on-board diagnostic tunction (present failure indication mode).
4. Press the AUTO switch.

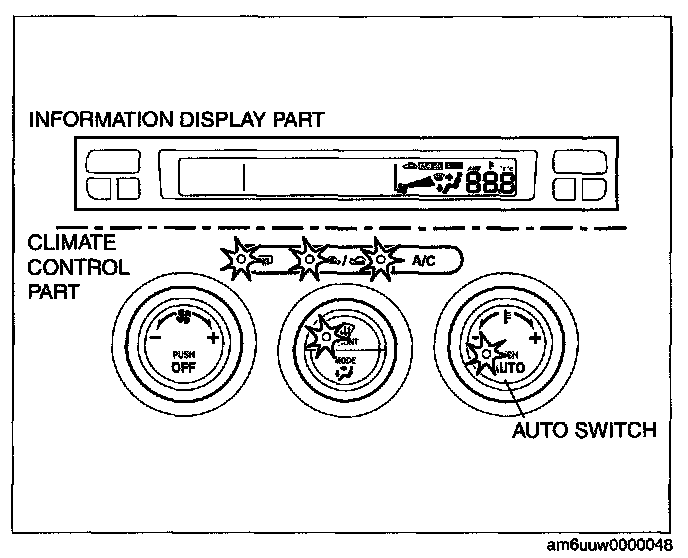

5. Verify that all the indicator lights of the climate control unit and center panel (climate control part) illuminate for 4 S.

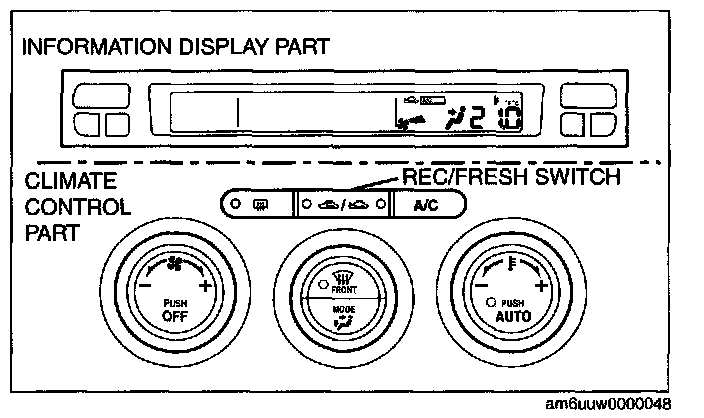

6. Verify the operation of each output device when changing steps by pressing the REC/FRESH switch, and referring to the output device operation check chart.




- If not as specified, inspect the malfunctioning system.

NOTE:
- If the AUTO switch is pressed again, the on-board diagnostic function will return to present failure indication mode.

7. Turn the ignition switch to LOCK position to end the on-board diagnostic function.

Output Device Operation Check Table

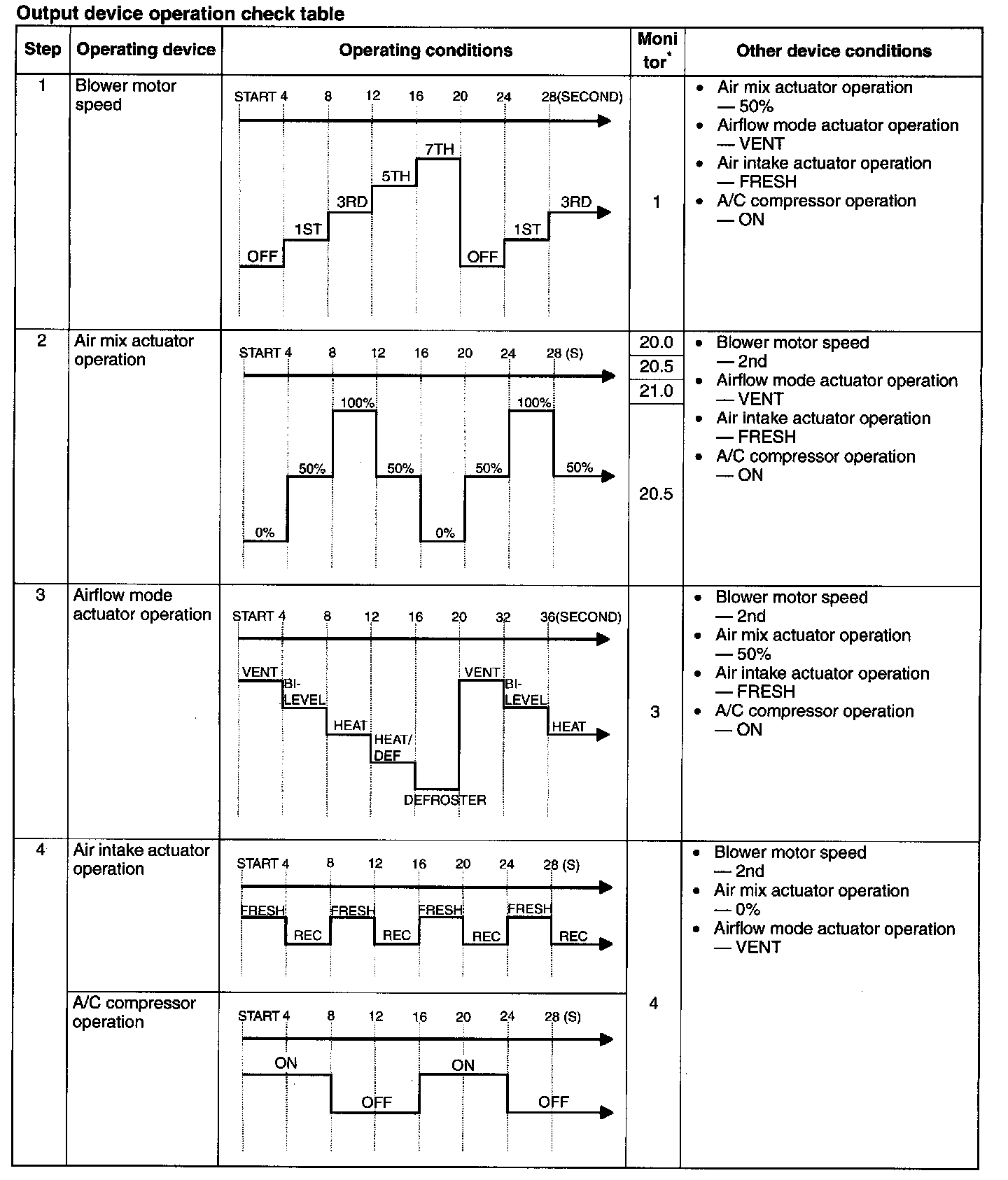

Output Device Operation Check Table:
