Backup Lamp Switch: Testing and Inspection

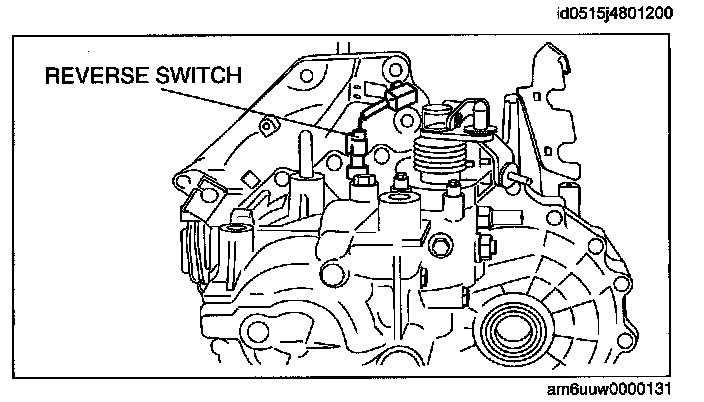

REVERSE SWITCH INSPECTION [A65M-R] 1.
Disconnect the reverse switch connector.
2.

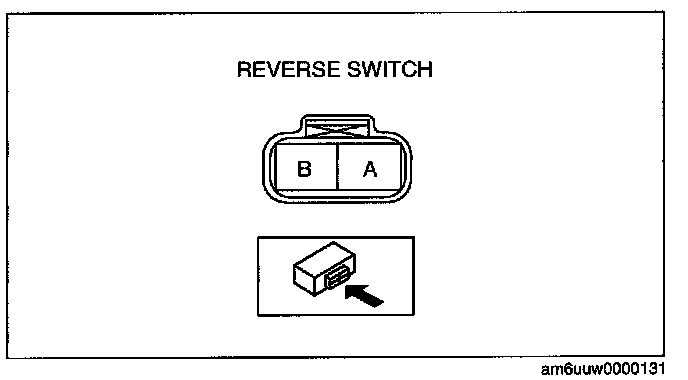

Shift the shift lever to each position, and inspect for continuity between terminals A and B.
^
If not as specified, replace the reverse switch.

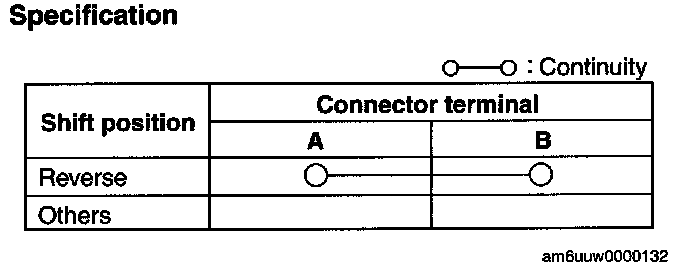

Specification 3.
Connect the reverse switch connector.
