Overhaul

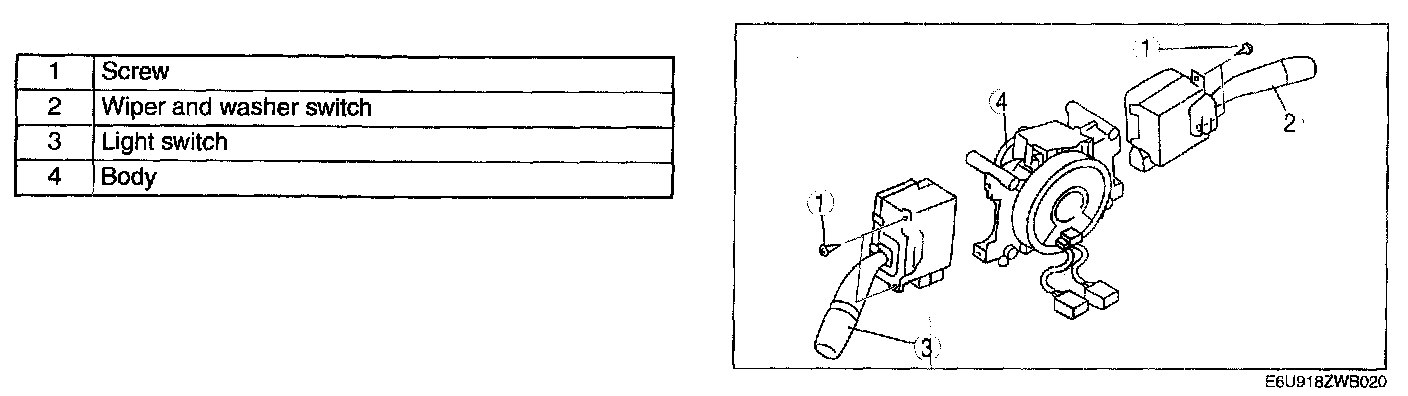

COMBINATION SWITCH DISASSEMBLY/ASSEMBLYCAUTION: The clock spring is generally not to be removed from the
combination switch as may result in a malfunction of the
steering angle sensor. However, remove it only when replacing the clock spring as a single unit by referring to CLOCK SPRING REMOVAL/INSTALLATION.
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
