Specification (Unloaded)*1

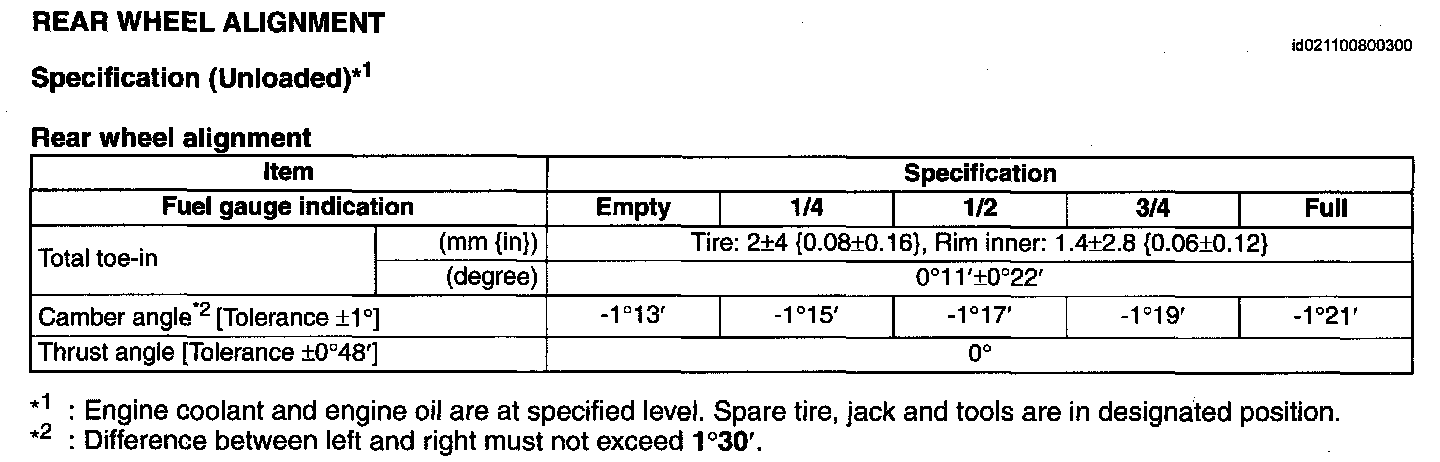

REAR WHEEL ALIGNMENTSpecification (Unloaded)*1 Rear wheel alignment REAR WHEEL ALIGNMENT SPECIFICATION (UNLOADED)*1:
*1 : Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2 : Difference between left and right must not exceed 1°30'.
Note ^
Adjust the toe-in after adjusting the camber.
