Ignition Coil: Service and Repair

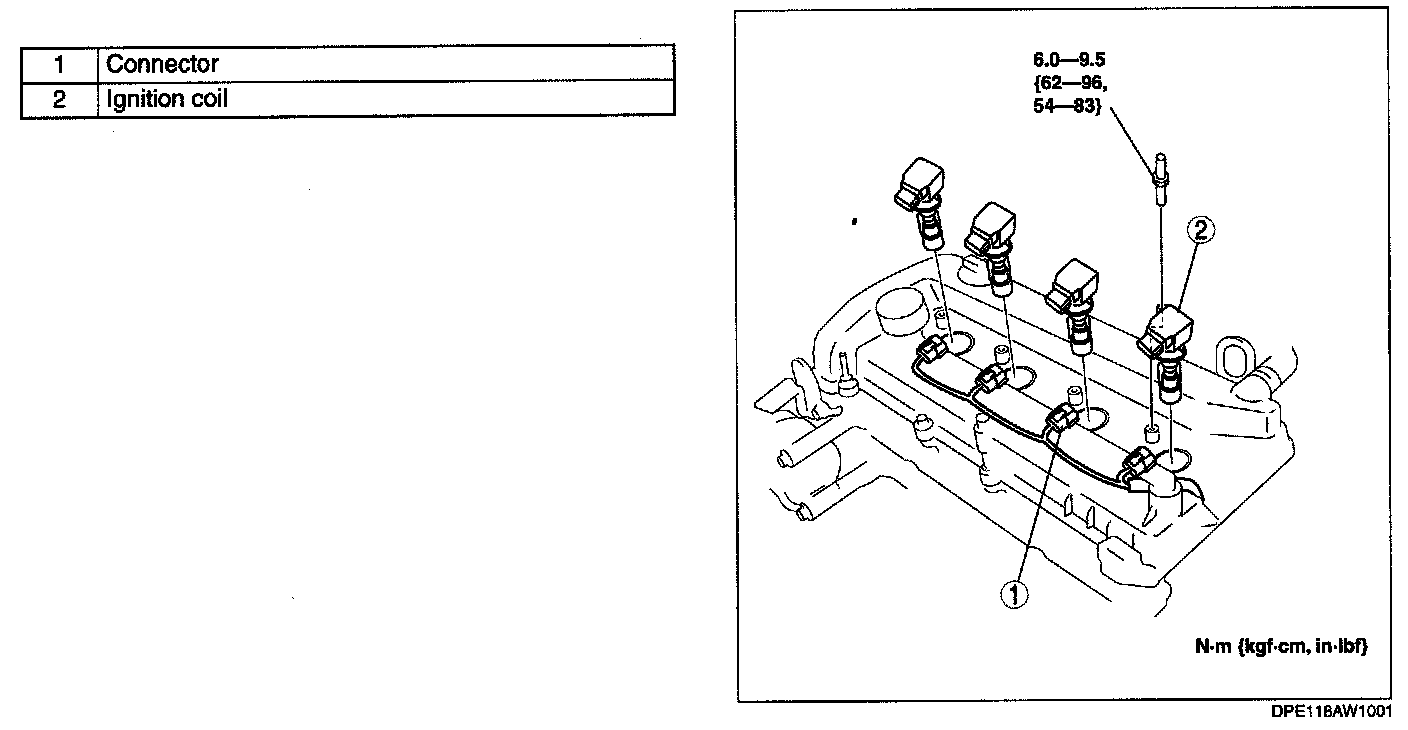

IGNITION COIL REMOVAL/INSTALLATION[L3, AJ]

L3
1. Disconnect the negative battery cable.
2. Remove the plug hole plate.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

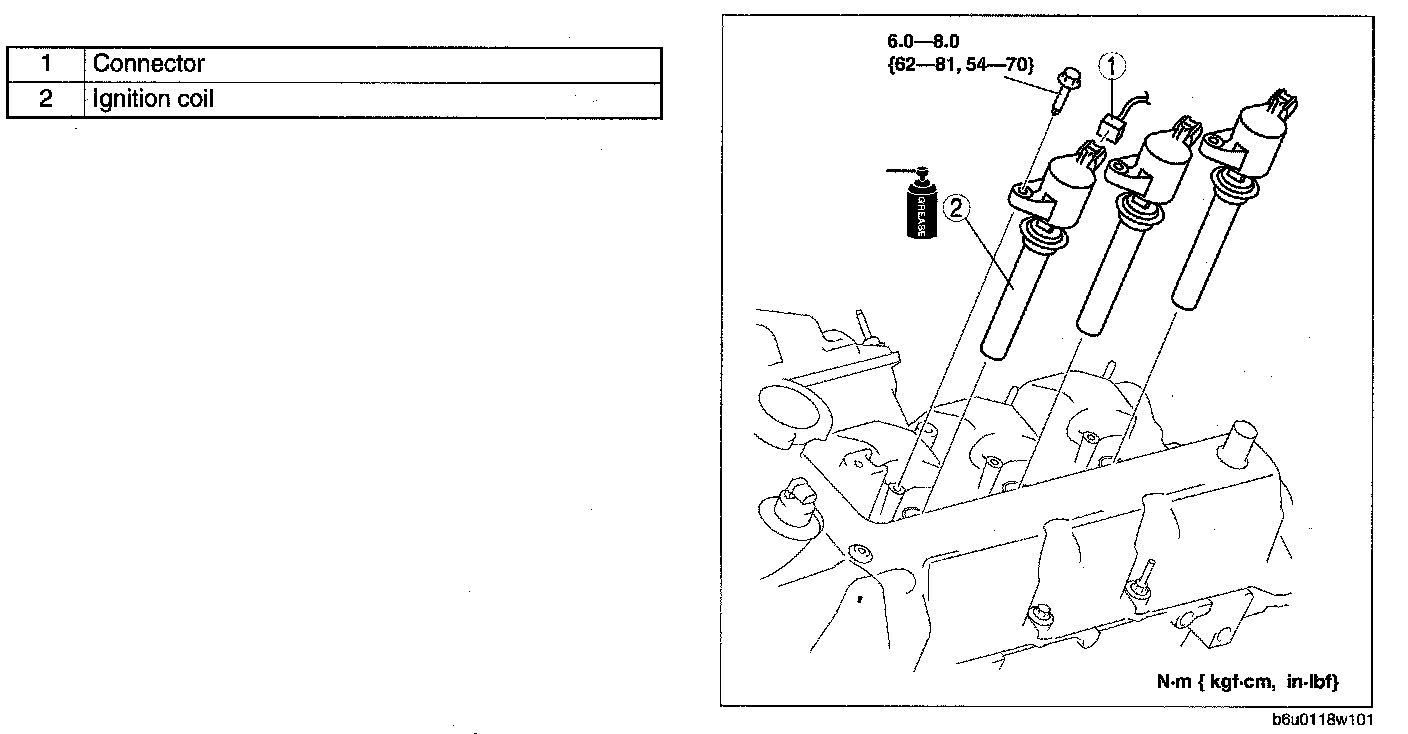

AJ
1. Disconnect the negative battery cable.
2. LH: Remove the plug hole plate. RH: Remove the dynamic chamber.




3. Remove in the order indicated in the table.

CAUTION:
- Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.
- Specified grease: Motorcraft XG-3A

4. Install in the reverse order of removal.
