Clockspring Assembly / Spiral Cable: Testing and Inspection
CLOCK SPRING INSPECTION 1.
Remove the clock spring.
2.

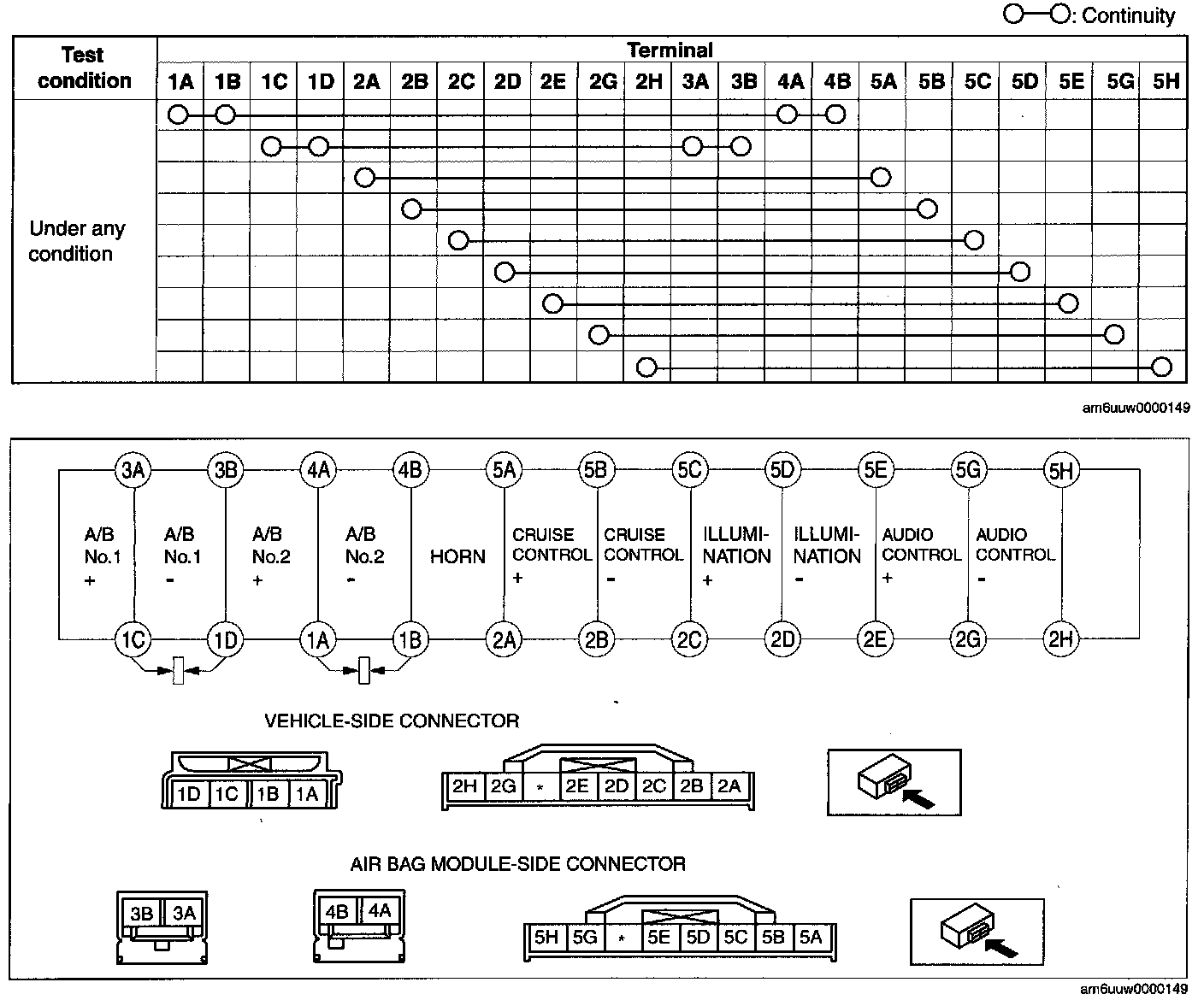

Verify that the continuity is as indicated in the table.
-
It not as indicated in the table, replace the clock spring.
NOTE -
When the vehicle-side connector to the clock spring is disconnected, terminals 1 A, 1 B, 1 C and 1 D are shorted to prevent unexpected operation (deployment) to the air bag module.
