Steering Angle Sensor: Testing and Inspection

STEERING ANGLE SENSOR INSPECTION

1. Disconnect the steering angle sensor connector.
2. Connect battery positive voltage to terminal A and ground to terminal F of the steering angle sensor.

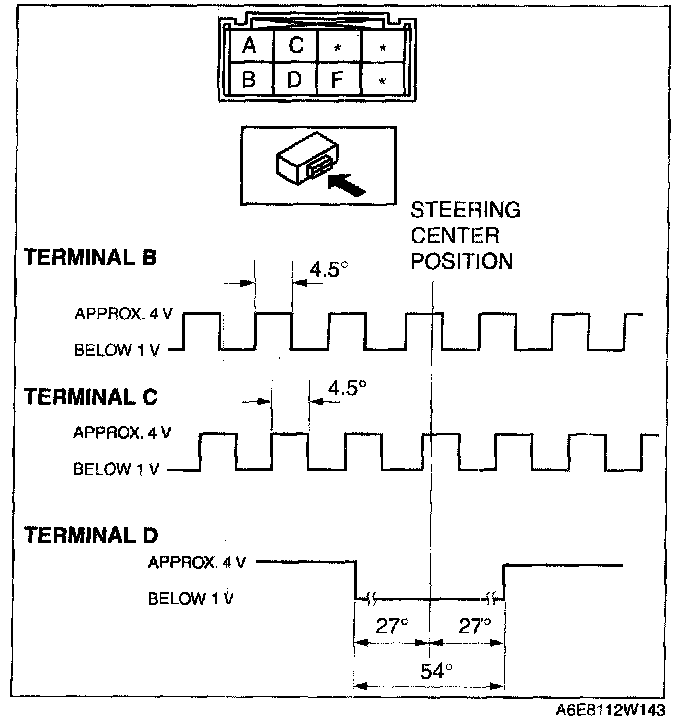

3. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.
- If there is any malfunction. redace the body of the combination switch.
