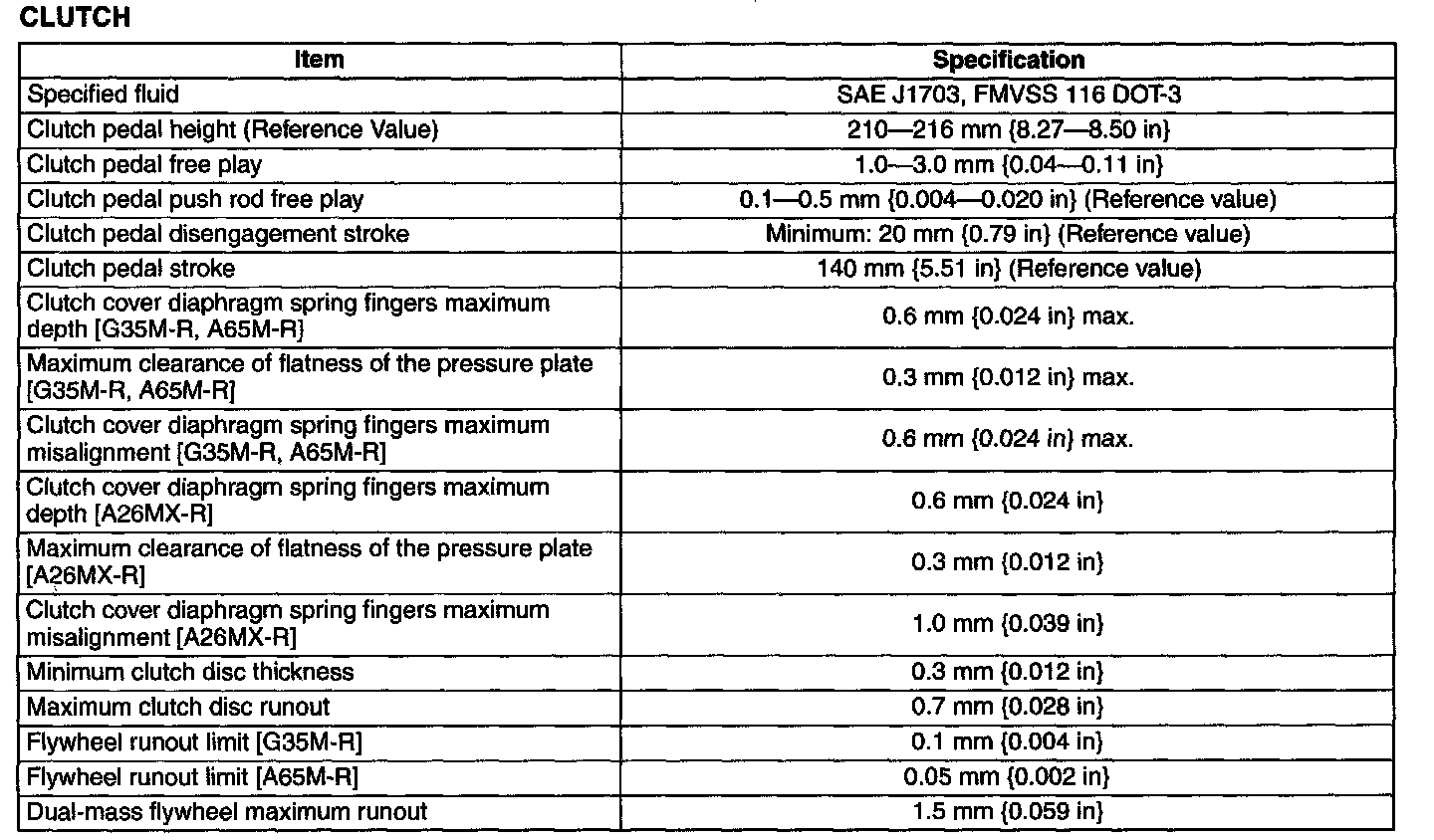

Clutch: Specifications
Clutch:
ClutchG35M-R manual transaxle models

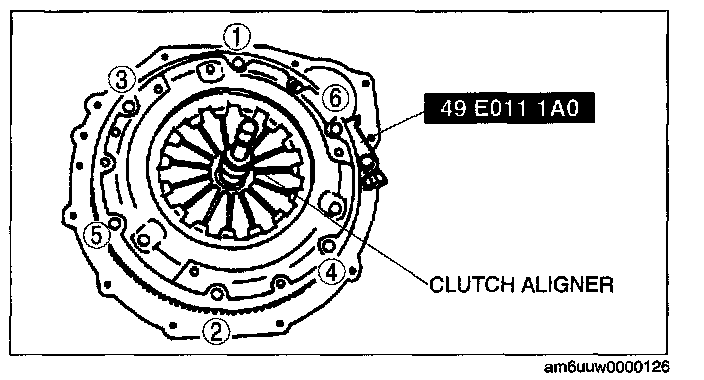

Pressure Plate
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25-33 N-m (2.6-3.3 kgf-m, 19-24 ft-lbf)
A65M-R manual transaxle models

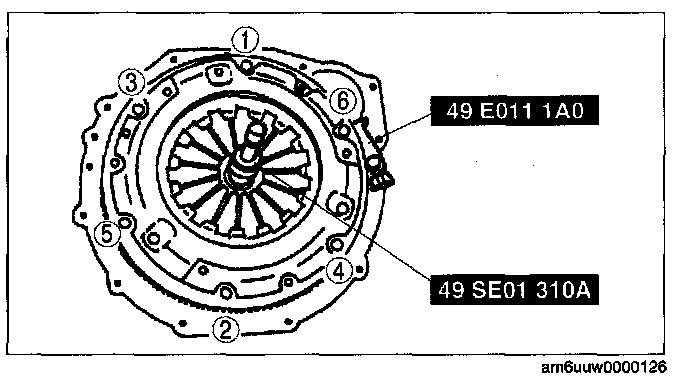

Pressure Plate
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25-33 N-m (2.6-3.3 kgf-m, 19-24 ft-lbf)
