Flywheel Inspection [G35M-R, A65M-R]
FLYWHEEL INSPECTION [G35M-R, A65M-R] 1.

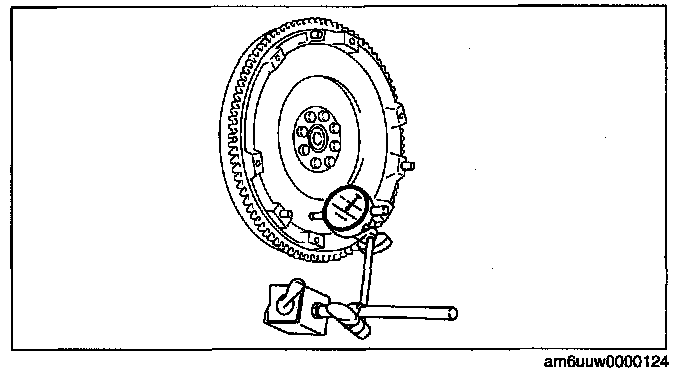

Install a dial gauge on the cylinder block.
2.
Measure the
flywheel runout using a dial gauge.
^
If the runout is excessive, replace the
flywheel.
Flywheel runout runout limit [G35M-R] 0.1 mm (0.004 in)
Flywheel runout runout limit [A65M-R] 0.05 mm (0.002 in)
