Gear Sensor/Switch: Service and Repair

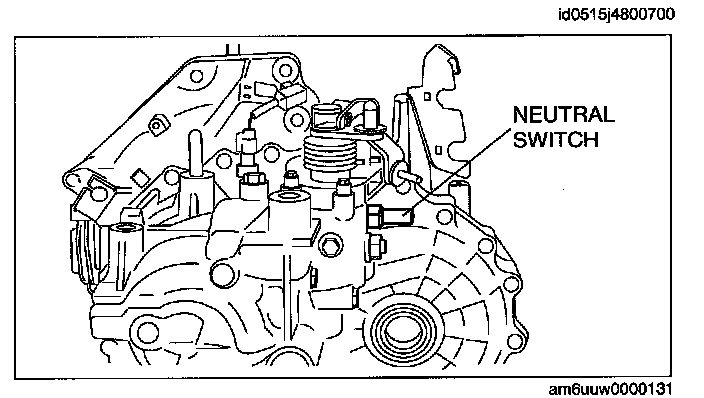

NEUTRAL SWITCH REMOVAL/INSTALLATION [A65M-R] 1.
Remove the neutral switch.
2.
Apply a light coat of silicone sealant to the screw of the neutral switch.
Sealant Three Bond product: TB1215
3.
Install the neutral switch to the transaxle case.
Tightening torque 22.5-33.3 N-m (2.3-3.4 kgf-m, 16.6-24.6 ft-lbf)
