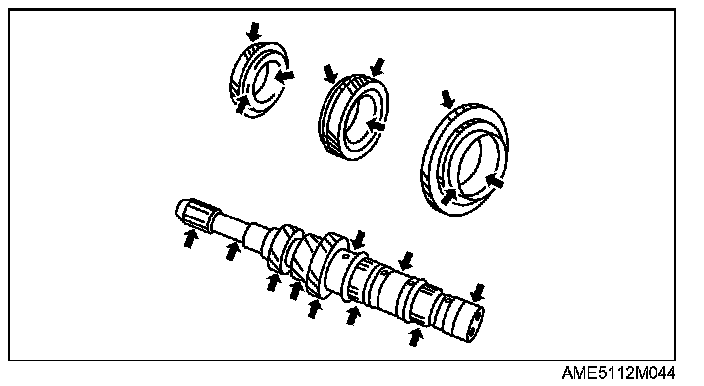

Primary Shaft and Gear Inspection
Primary Shaft and Gear Inspection 1.
Inspect the shaft for damage, abnormal wear, dents, flaking, or bending.
^
If there is a malfunction, replace the shaft.
2.
Inspect the gears for damage, abnormal wear, dents, flaking, or bending.
^
If there is a malfunction, replace the gear.
3.
Inspect the oil passage for clogging.
^
If there is a malfunction, replace the shaft.
