Power Window Motor: Testing and Inspection

POWER WINDOW MOTOR INSPECTION

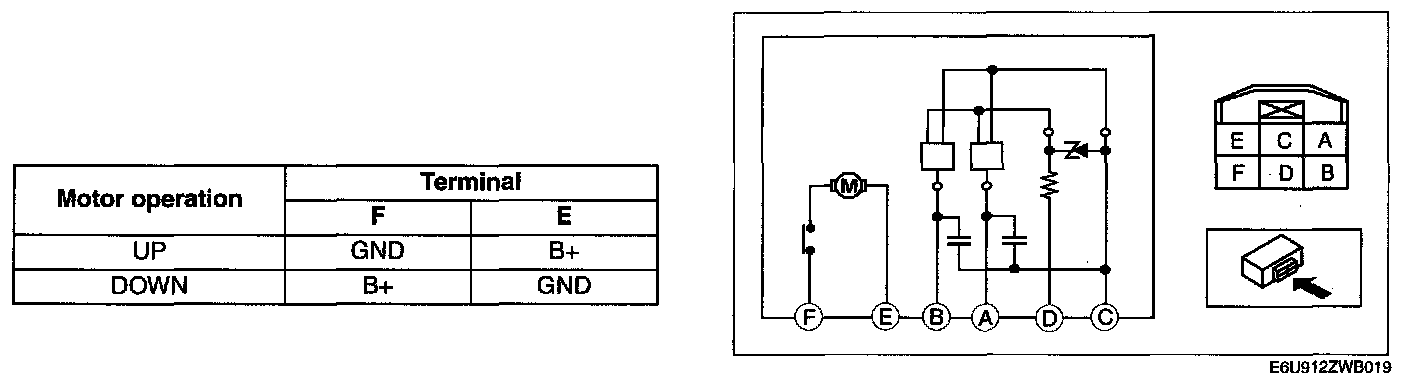

Driver's Side and Passenger's Side

1. Disconnect the power Window motor connector.
2. Apply battery positive voltage to the power window motor terminals E and F and inspect the operation the power window motor operation.
- If there is any malfunction, replace the power window motor.






3. Apply battery positive voltage to the power window motor terminal D and connect terminal C to ground.
4. Measure the voltage at terminal B and A while performing Step 3.
- If there is any malfunction, replace the power window motor.

Voltage
Pulse wave: MAX. 5 V, MIN. 0 V

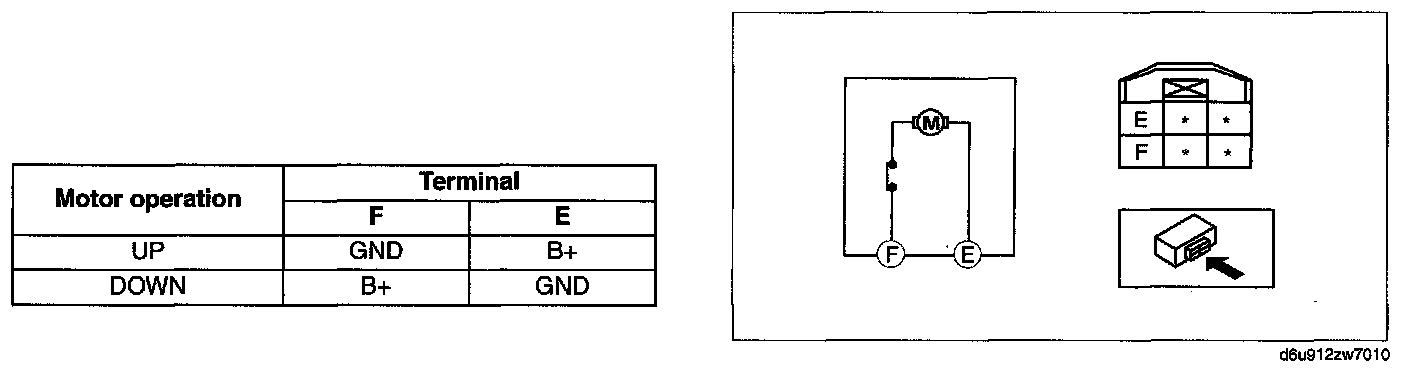

Rear Side

1. Apply battery positive voltage to the power window motor terminals and inspect the power window motor operation.
- If there is any malfunction, replace the power window motor.
