Basic Power Window System Inspection

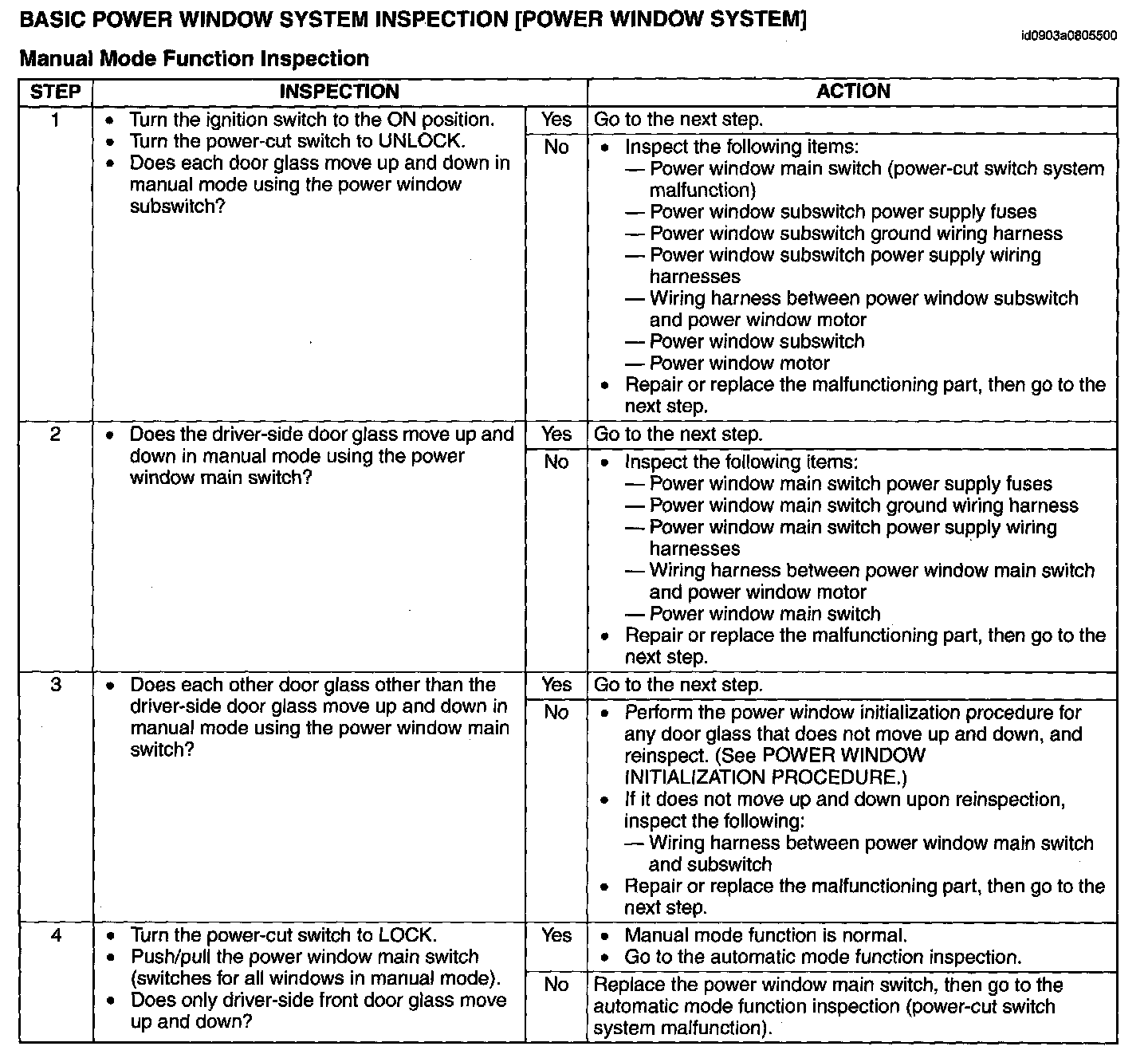

Basic Power Window System Inspection [Power Window System]

Step 1-Step 4:

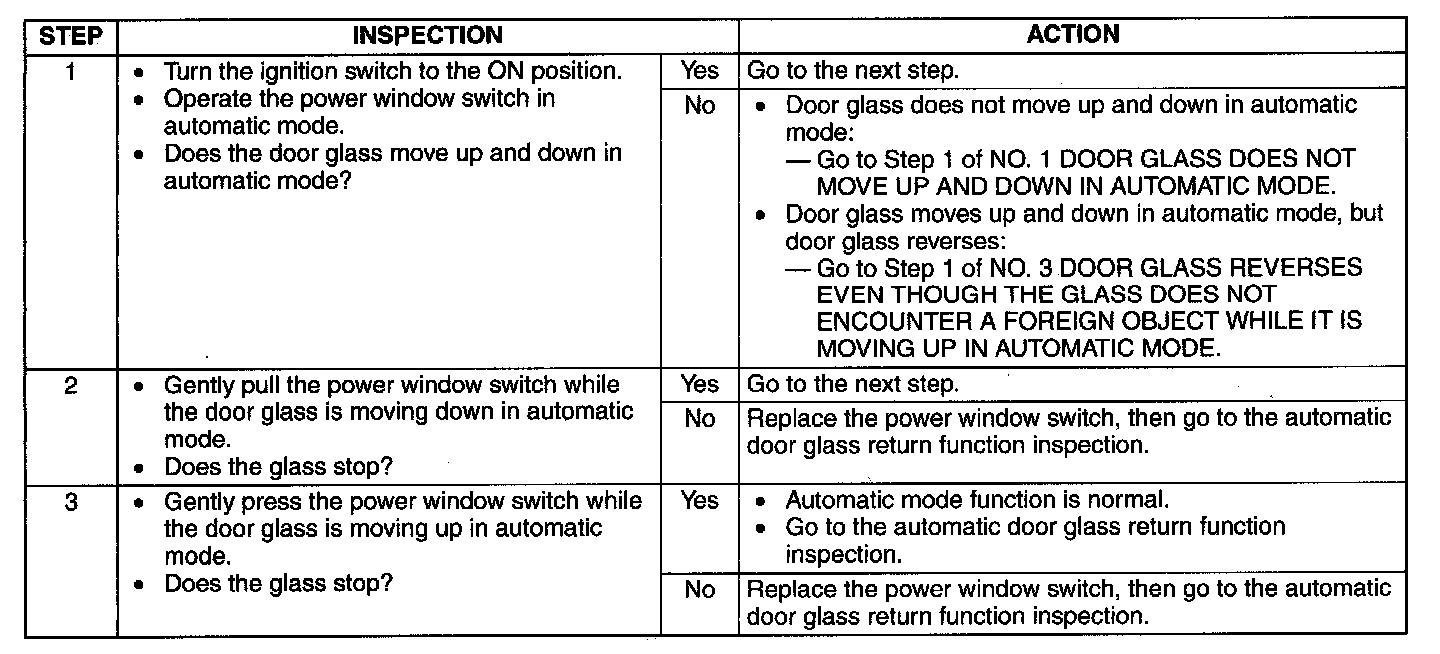

Automatic Mode Function Inspection

NOTE
- Perform the following inspection for the power window main switch and the power window subswitches for each window.

Step 1-Step 3:

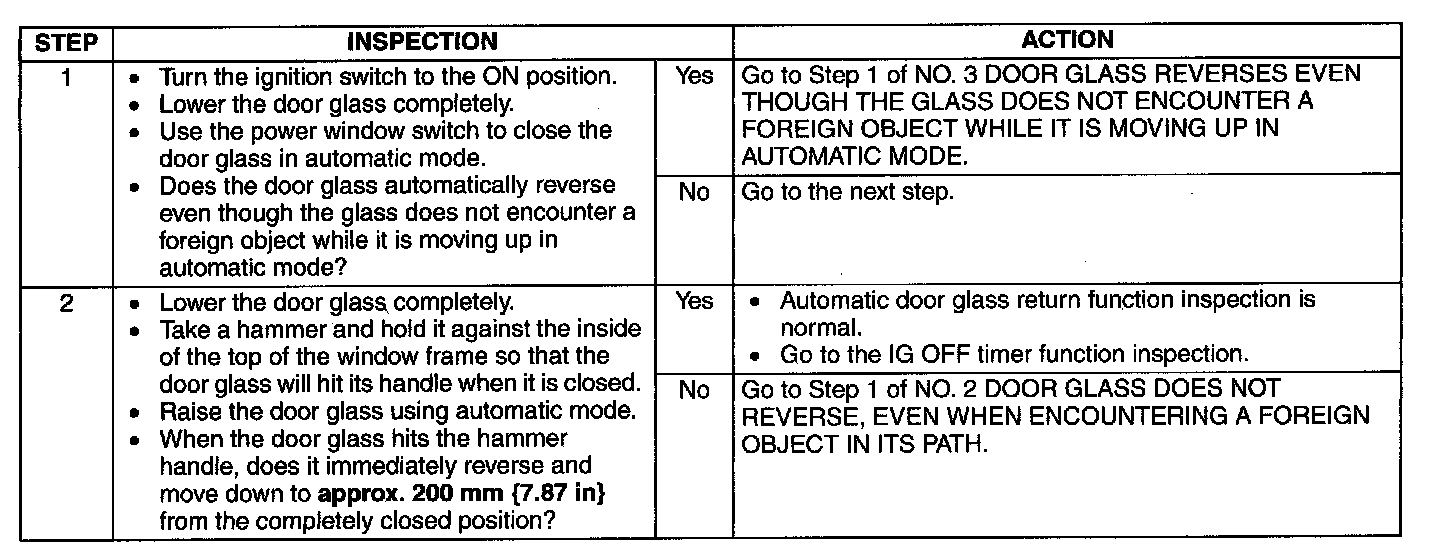

Automatic Door Glass Return Function Inspection

NOTE
- Perform the following inspection for the power window main switch and the power window subswitches for each window.
- With the switch held at auto-up, the door glass does not automatically reverse even when a foreign object is encountered.

Step 1-Step 2:

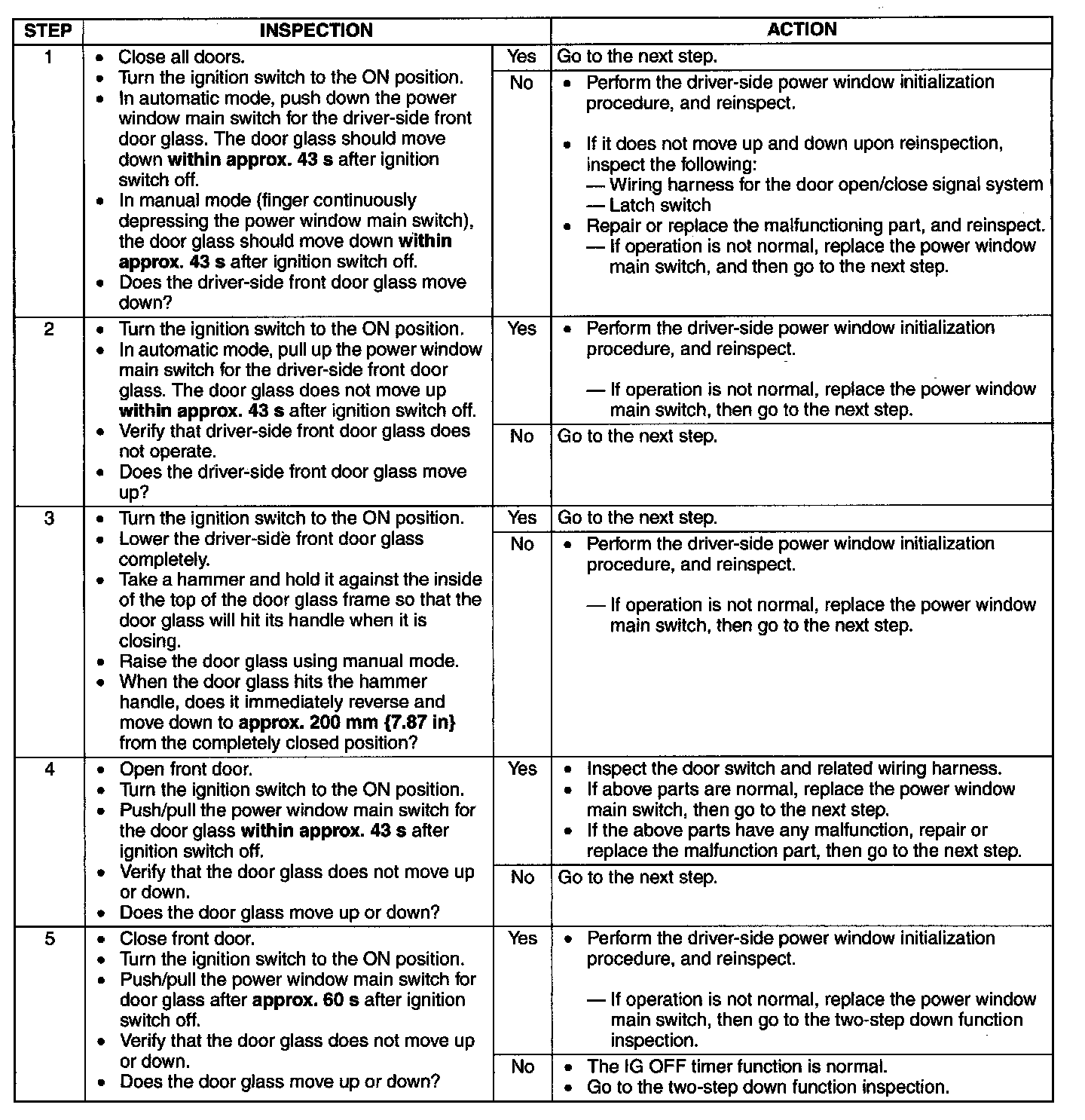

IG Off Timer Function Inspection

Step 1-Step 5:

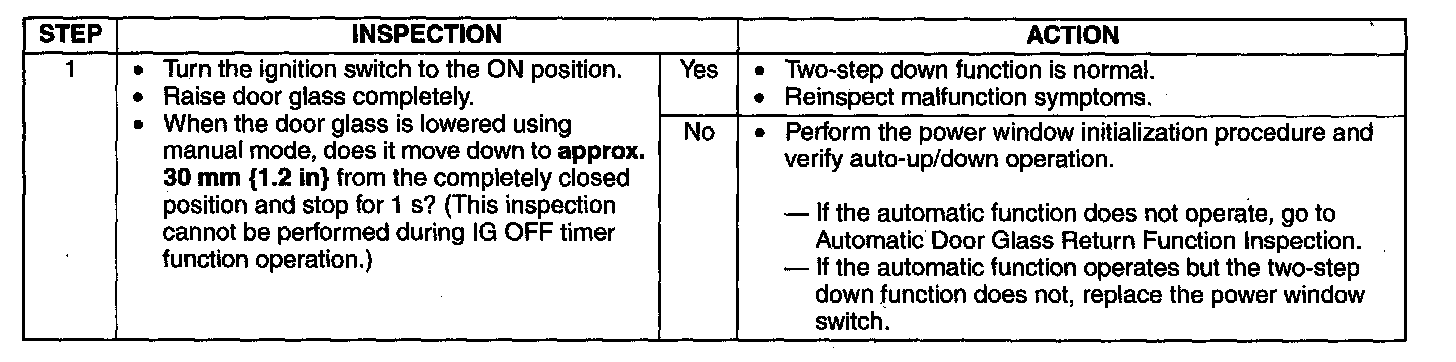

Two-step Down Function Inspection

- The distance the door glass opens can be changed using the two-step down function (approx. 20-100 mm {0.79-3.93 in}).
- The two-step down function can be made in6perative. (The function is operative at the initial setting.)
- The two-step down function does not function during IG OFF timer.

NOTE
- Perform the following inspection for the power window main switch and the power window subswitches for each window.

Step 1:
