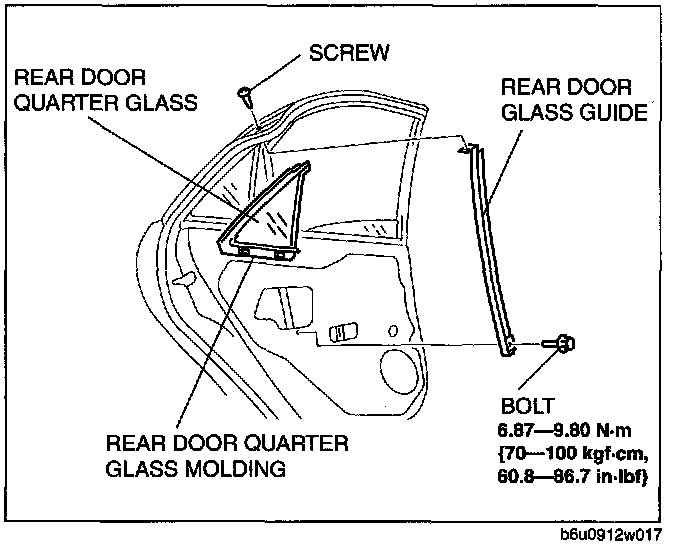

Rear Door Quarter Glass
REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION 1.
Remove the rear door trim.
2.
Remove the screw and bolt, then remove the rear door glass guide.
3.
Remove the rear door quarter glass and the molding as a signal unit.
4.
Remove the rear door quarter glass molding from the glass.
5.
Install in the reverse order of removal.
