Windshield Washer Motor Inspection
WINDSHIELD WASHER MOTOR INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the front bumper.
3.

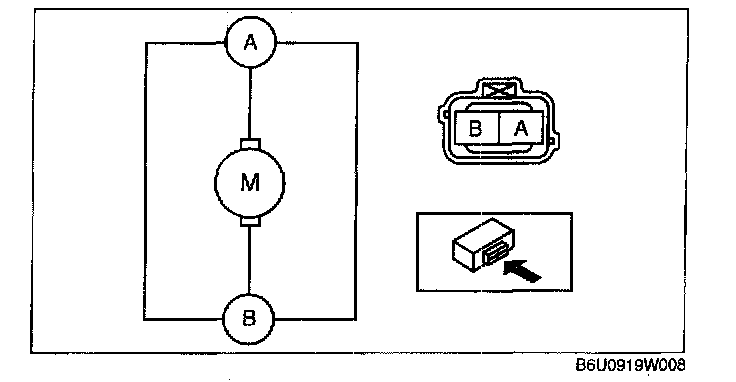

Connect battery positive voltage to the motor terminal A and ground to the motor terminal B.
4.
Verify that the
windshield washer motor operates.
-
If the motor does not operate, replace the
windshield washer motor.
