Overhaul

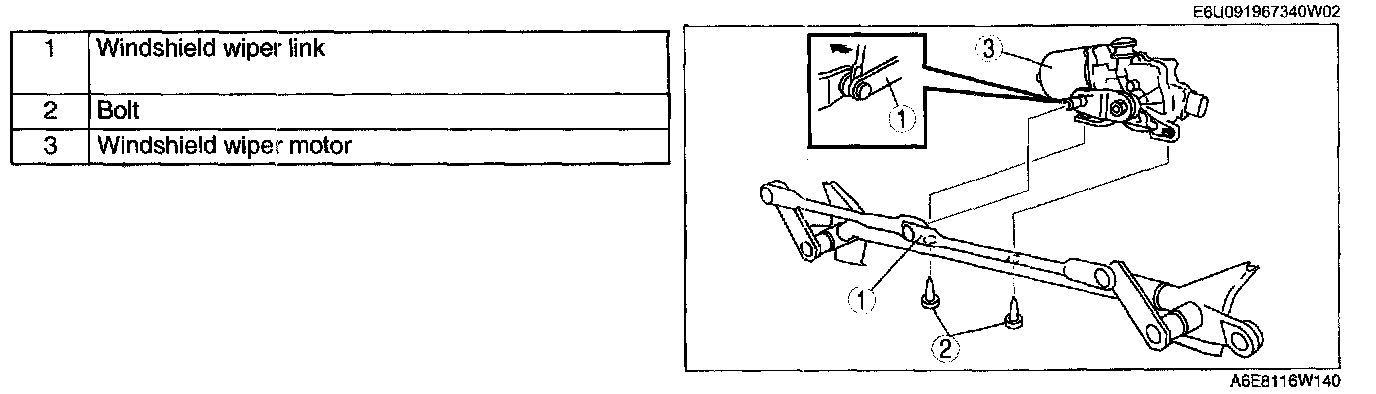

WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY 1.
Disassemble in the order indicated in the above table.
2.
Assemble in the reverse order of disassembly.
Windshield Wiper Link Removal Note 1.
Pry off the connection between the windshield wiper motor and windshield wiper link.
