Accelerator Pedal Position Sensor: Testing and Inspection

ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION[AJ]

NOTE: Perform the following inspection only when directed.




1. Connect the M-MDS to the DLC-2.
2. Turn the ignition switch to ON position.
3. Select APP1 or APP2 PID (percentage) on the M-MDS.
4. Verify that the APP1 or APP2 PID (percentage) changes smoothly while accelerator pedal is gradually depressed.
- If as verified, go to next step.
- If not as verified, perform the "Circuit Open Short Inspection".

Specification:

5. Verify that the APP1 or APP2 PID (percentage) is as indicated in the table below according to the condition of the accelerator pedal.
- If not verified, perform the "Circuit Open/Short Inspection"
- If there is no open or short circuit, replace the APP sensor.

Circuit Open/Short Inspection




1. Disconnect the PCM connector.

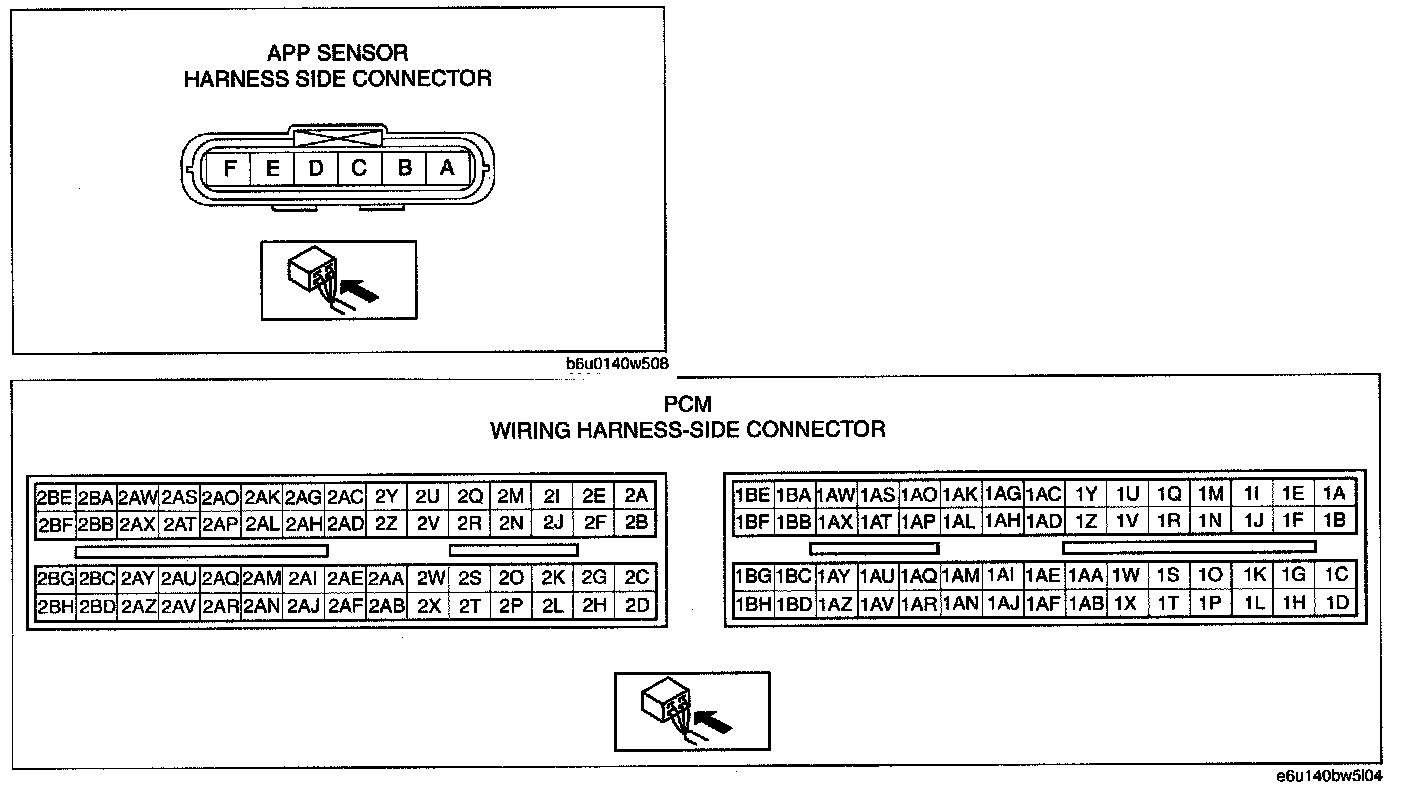

2. Inspect the following harness for open or short circuit. (Continuity check)

Open circuit
- APP sensor terminal A and PCM terminal 1AV
- APP sensor terminal B and PCM terminal 1T
- APP sensor terminal C and PCM terminal 1AP
- APP sensor terminal D and PCM terminal 1AR
- APP sensor terminal E and PCM terminal 1x
- APP sensor terminal F and PCM terminal 1AO

Short circuit
- APP sensor terminal A and power supply
- APP sensor terminal A and body ground
- APP sensor terminal B and power supply
- APP sensor terminal C and power supply
- APP sensor terminal C and body ground
- APP sensor terminal D and power supply
- APP sensor terminal D and body ground
- APP sensor terminal E and power supply
- APP sensor terminal F and power supply
- APP sensor terminal F and body ground
