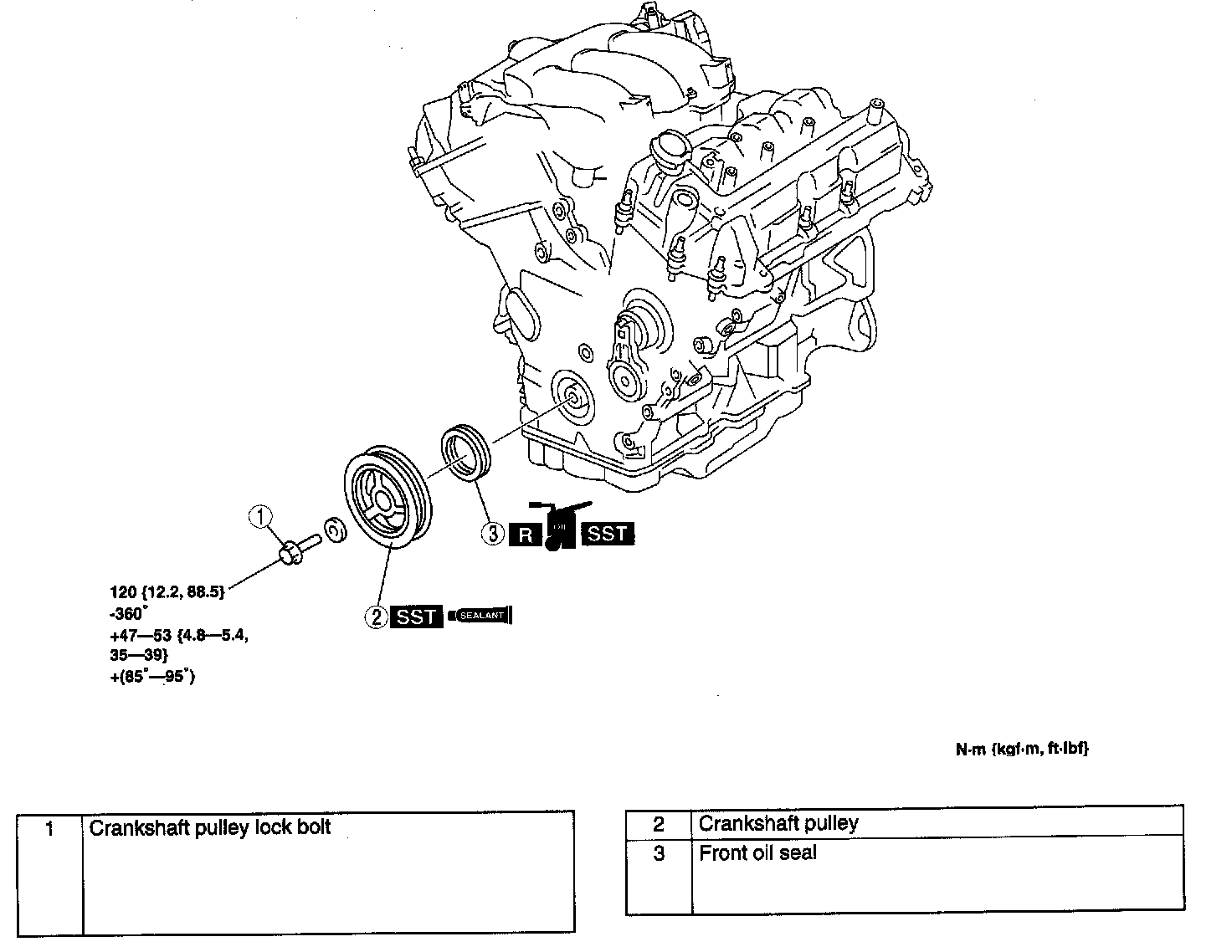

Harmonic Balancer - Crankshaft Pulley
Crankshaft Pulley Tighten the new crankshaft pulley lock bolt in four steps.
(1)
Tighten to
120 Nm (12.2 kgf.m, 88.5 ft. lbf)
(2)
Loosen
360° (one full turn) in reverse order.
(3)
Tighten to
47 - 53 Nm (4.8 - 5.4 kgf.m, 35 - 39 ft. lbf)
(4)
Tighten
85° - 95°
