Headliner: Service and Repair

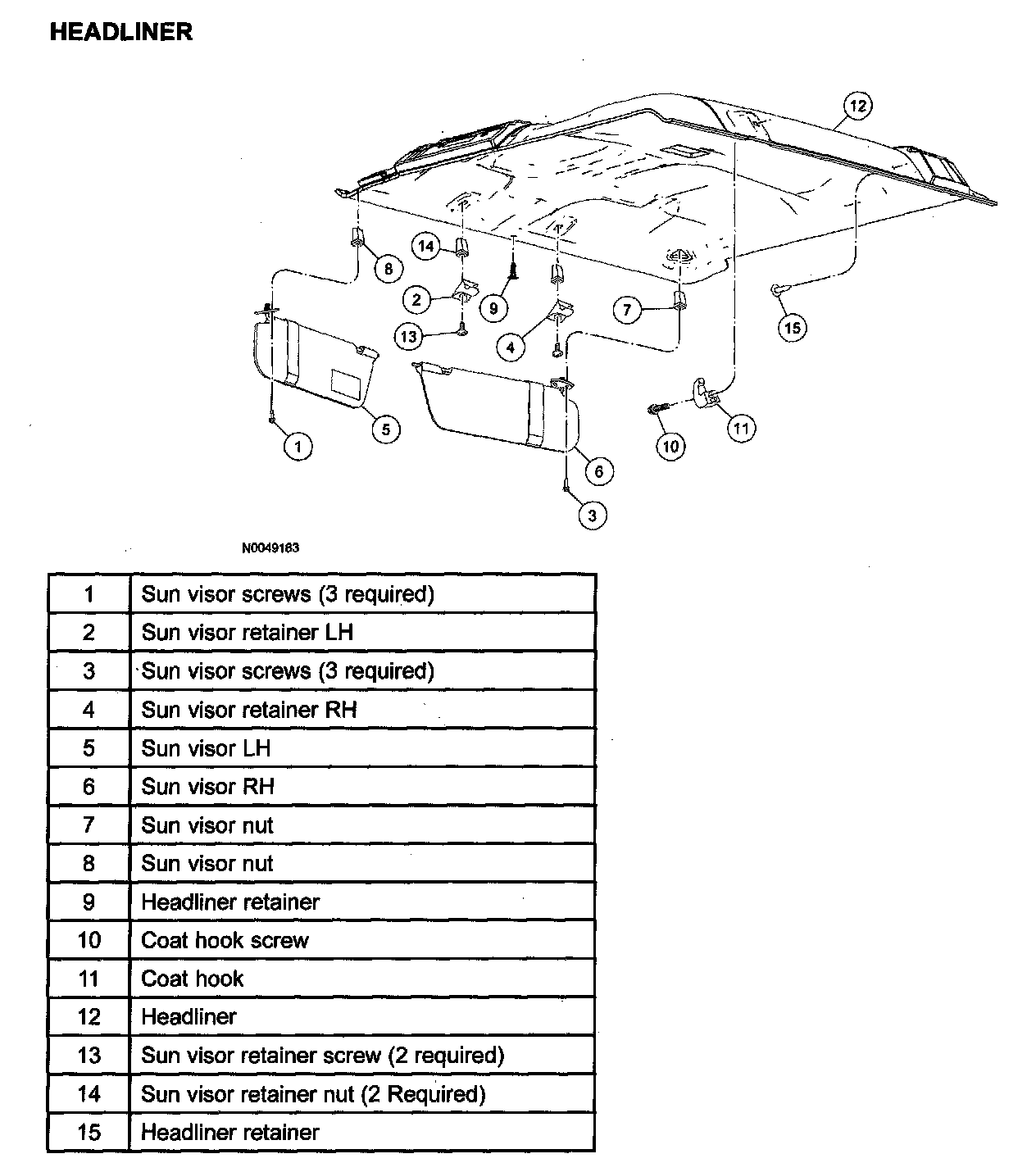

HEADLINER






Removal and Installation

All vehicles






1. Remove the sun visors.
1. Remove the 6 screws.
2. Remove the sun visors.






2. Remove the sun visor brackets.
1. Remove the screws.
2. Remove the sun visor brackets.






3. Remove the dome lamp lens.






4. Remove the dome lamp.
1. Remove the 3 screws.
2. Remove the dome lamp.






5. Remove the coat hooks.
1. Remove the screws.
2. Remove the coat hooks.

2-Door, Regular Cab
6. Remove the B-pillar trim panels.

4-Door Cab Plus
7. Remove the A-pillar trim panels.
8. Remove the C-pillar trim panels.

All vehicles
9. Remove the headliner.
10. To install, reverse the removal procedure.
