Interior Rear View Mirror

Interior Rear View Mirror

Removal

1. Position the interior rear view mirror in the full DOWN position.
2. Grasp the interior rear view mirror and carefully continue to pull down on the mirror until released from the bracket.

Installation

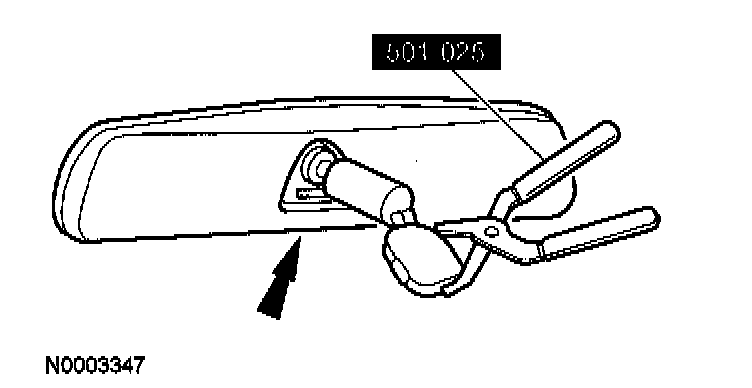

1. Place the interior rear view mirror on the windshield bracket.

2. Using SST 501-025, press the interior rear view mirror on the windshield bracket until fully seated. fully seated.
