Disc Shield

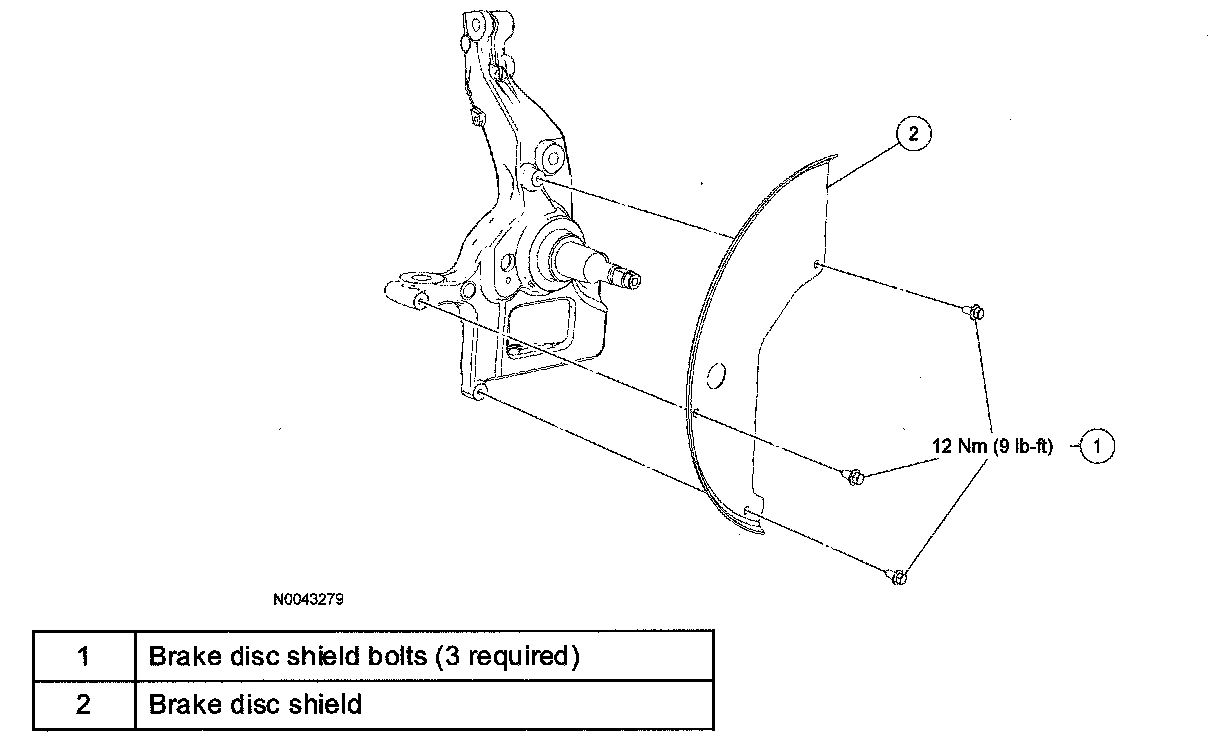

BRAKE DISC SHIELD Note: ^
2WD shown, 4WD similar.
Removal and Installation 1.
Remove the brake disc.
2.
Remove the 3 brake disc shield bolts and the brake disc shield.
^
To install, tighten to
12 N-m (1.2 kgf-m, 9 ft-lbf).
3.
To install, reverse the removal procedure.
