Engine - Coolant Temperature Sensor/Switch: Service and Repair
WATER TEMPERATURE SENDER UNIT REMOVAL / INSTALLATION 1.
Disconnect the negative battery cable.
2.
Drain the cooling system.
3.
Disconnect the electrical connector.
4.

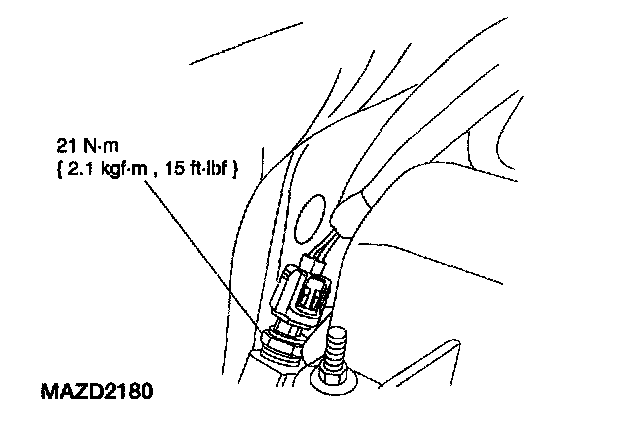

Remove the engine coolant temperature sensor.
Note: ^
Coat the threads with pipe thread sealant.
5.
To install, reverse the removal procedure.
