Water Pump: Service and Repair
WATER PUMP REMOVAL / INSTALLATION 1.
Remove the air cleaner outlet pipe.
2.
Drain the
cooling system.
3.
Remove the
drive belt.
4.

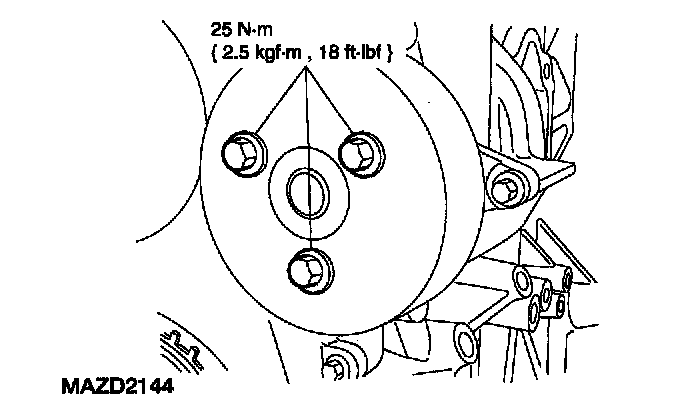

Remove the bolts and the water pump pulley.
5.
Remove the bolts and the water pump.
6.
To install, reverse the removal procedure.
