Instrument Panel Register Removal / Installation

INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION -LH

1. Remove the audio unit.

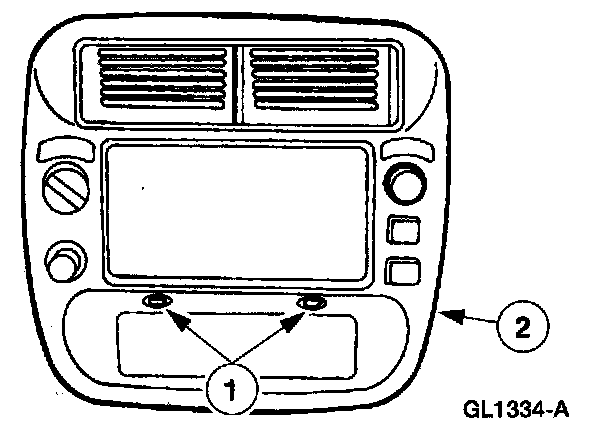

2. Remove the instrument panel center finish panel.
1. Remove the screws.
2. Disengage the retaining clips and partially remove the instrument panel center finish panel.
- Disconnect the electrical connectors and remove the instrument panel center finish panel.






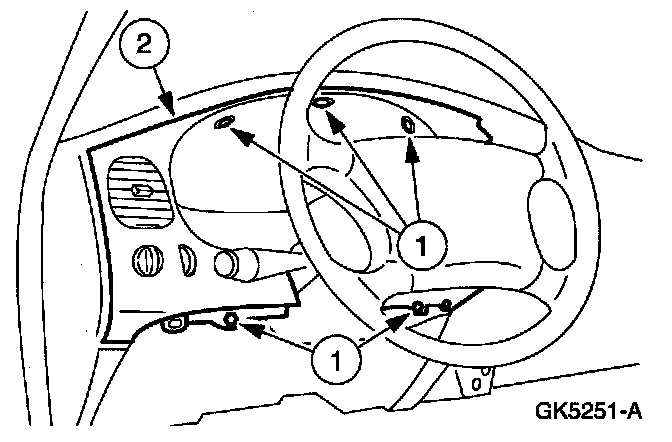

3. Remove the instrument cluster finish panel.
1. Remove the screws.
2. Disengage the retaining clips and partially remove the instrument cluster finish panel.
- Disconnect the electrical connectors and remove the instrument cluster finish panel.






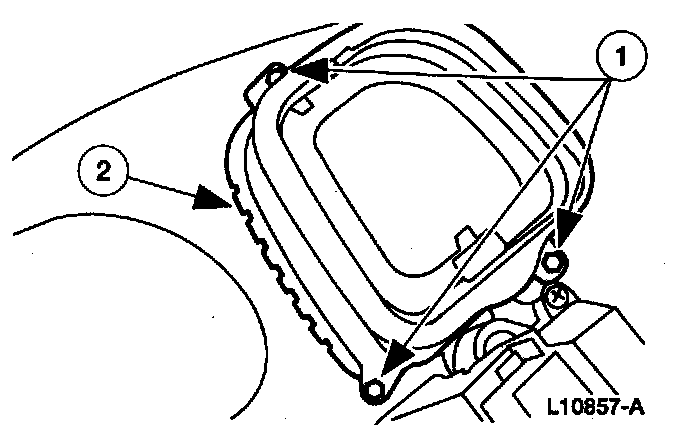

4. Remove the screws and the LH instrument panel register.






5. To install, reverse the removal procedure.


INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - RH

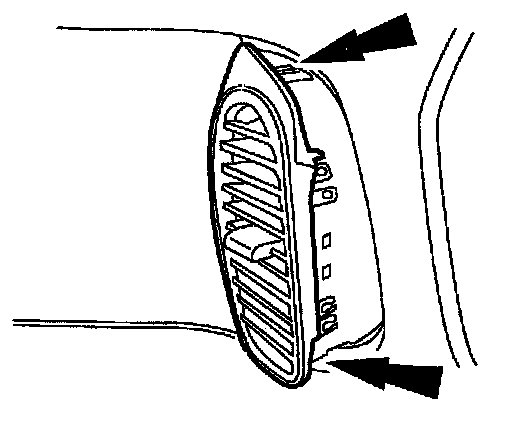

1. Lift the edge of the RH instrument panel register to expose the retainers.
2. Release the retainers and remove the RH instrument panel register.






3. To install, reverse the removal procedure.
