Pinpoint Test 2

PINPOINT TEST 2:THE INDIVIDUAL FOG LAMP IS INOPERATIVE

Normal Operation
When the fog lamp relay is energized, voltage is routed to the fog lamps through circuit (BR/Y). Ground for the LH and RH fog lamp is provided through circuits (B/Y) and (B/GY), respectively.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

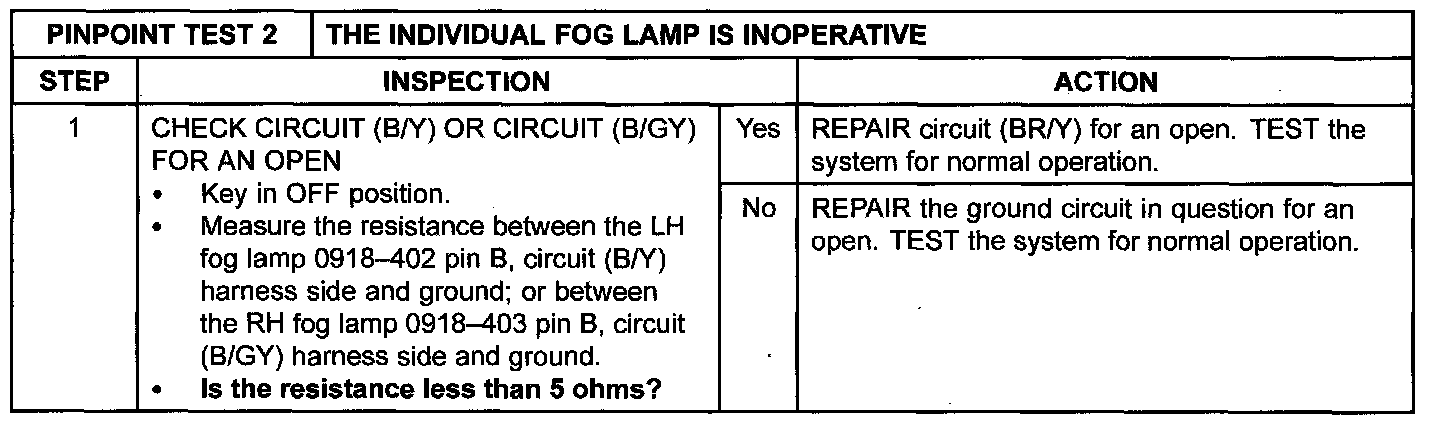

Step 1:
