Headlamp: Service and Repair

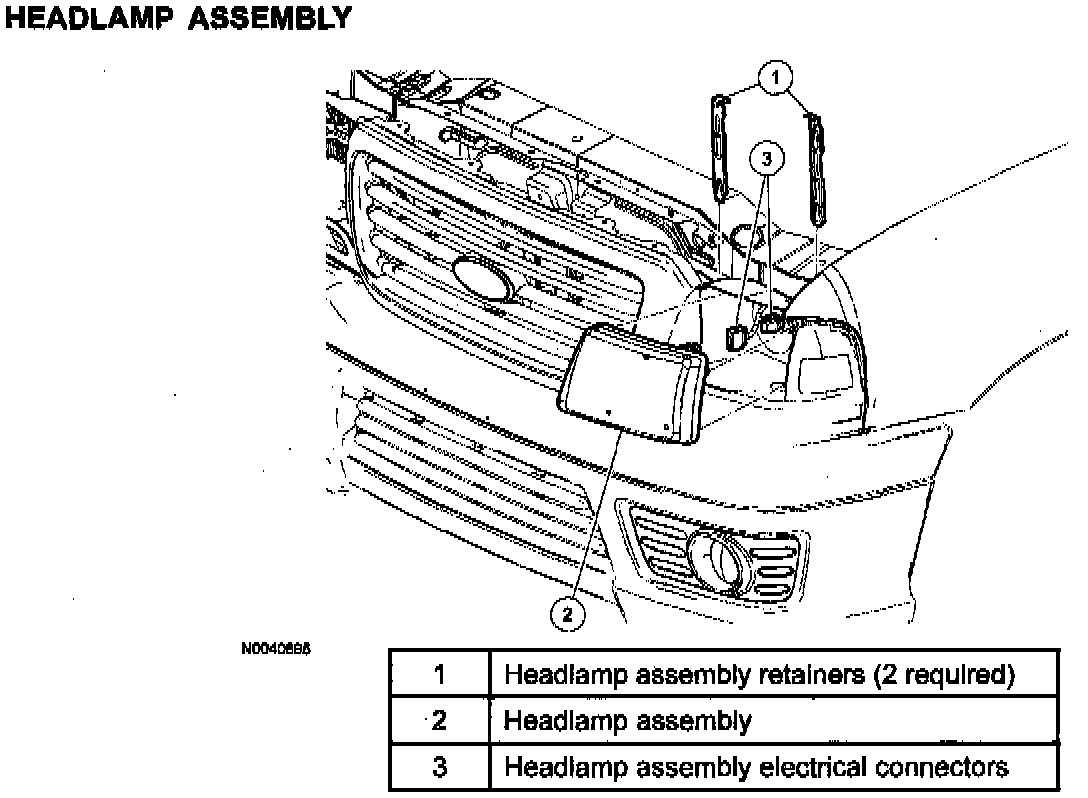

HEADLAMP ASSEMBLY REMOVAL / INSTALLATION

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

1. Raise and support the hood.

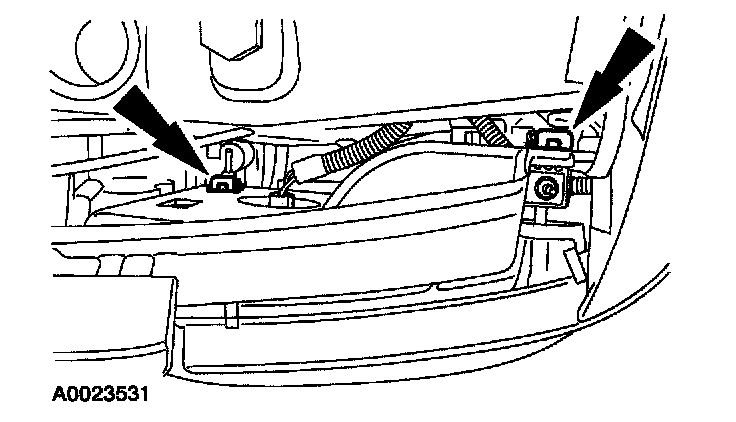

2. Pull up on the two retainer pins.

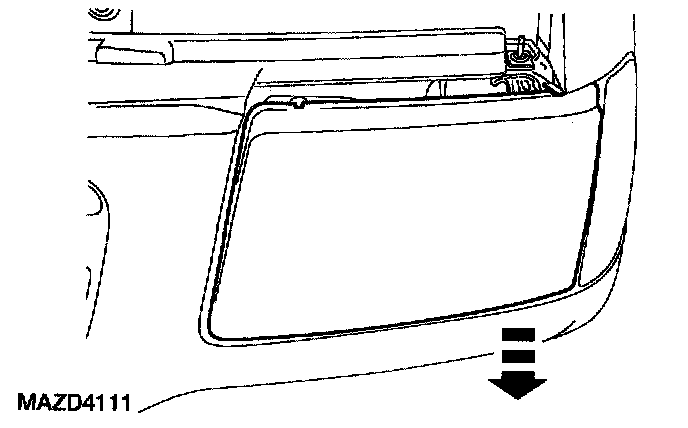

3. Pull the headlamp assembly forward.

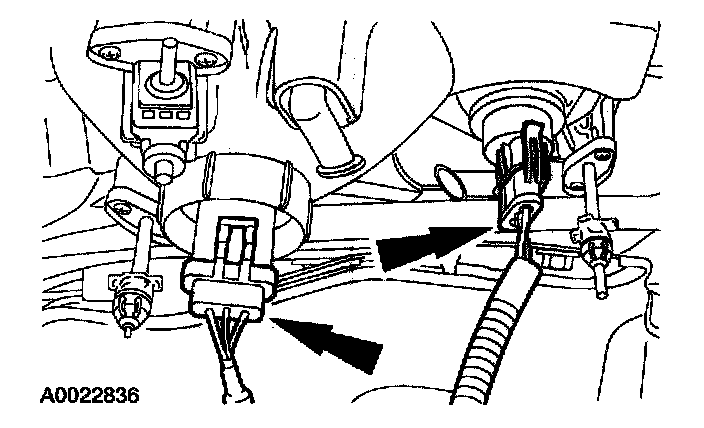

4. Disconnect the two electrical connectors.
5. Install in reverse order of removal.
- If necessary, adjust the headlamps.
