Pinpoint Test 6
PINPOINT TEST 6: THE FLASH-TO-PASS FEATURE IS INOPERATIVENormal OperationThe multifunction switch is supplied voltage from the smart junction box (SJB) through circuit (W/R). When the multifunction switch is placed in the FLASH-TO-PASS position, the voltage is routed to the high beam circuitry.
This pinpoint test is intended to diagnose the following: -
Fuse
-
Wiring, terminals or connectors
-
Multifunction switch
-
SJB

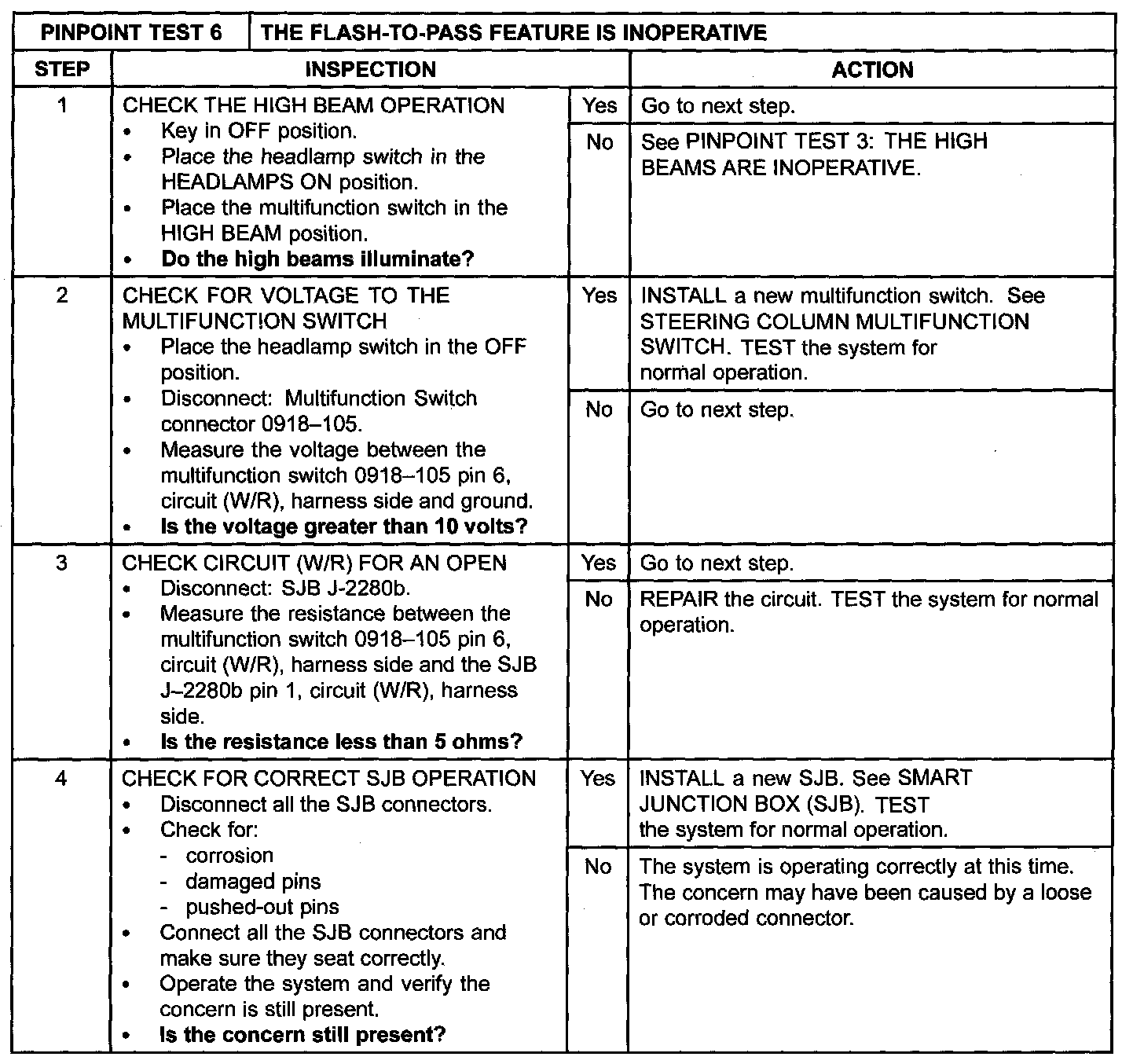

Step 1-Step 4:
