Pressure Plate
Clutch Pressure Plate
Note: ^
If reusing the clutch pressure plate, align using marks made during removal.

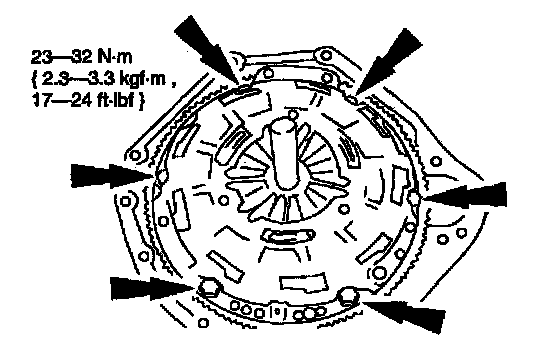

Using a suitable aligner, align the
clutch disc and the clutch pressure plate. Install the bolts and tighten in a star-pattern sequence.
