Alternator Pulley / Clutch: Service and Repair



GENERATOR PULLEY REMOVAL / INSTALLATION

1. Remove the generator. (See Generator Removal / Installation - 2.3L, or Generator Removal / Installation - 4.0L)

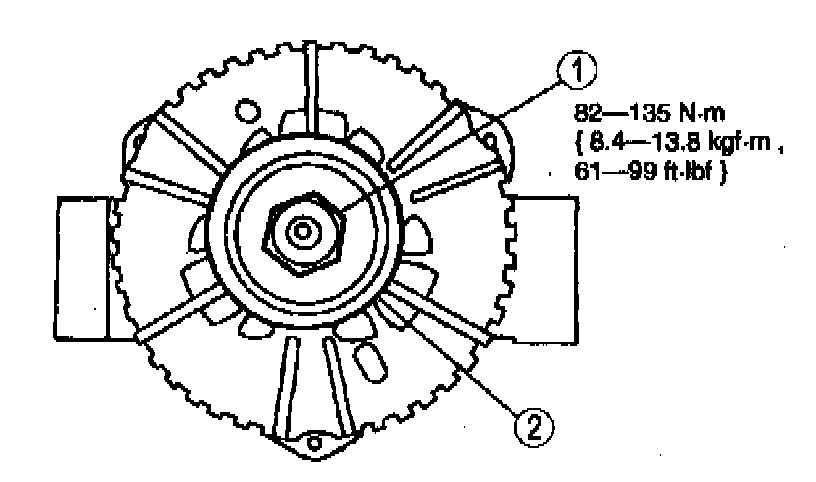

2. Remove the nut (1) and generator pulley (2).
3. To install, reverse the removal procedure.
