Pinpoint Test 12: Shift Concerns: Timing Early / Late (Some / All)

AUTOMATIC TRANSMISSION PINPOINT TEST 12: SHIFT CONCERNS: TIMING EARLY / LATE (SOME / ALL)

Note:
^ To diagnose specific shift-timing concerns, see the appropriate shift test.

Soft/Slipping Shift 1-2,

See AUTOMATIC TRANSMISSION PINPOINT TEST 22: SHIFT CONCERNS: SOFT / SLIPPING 1-2 ONLY (AUTOMATIC). Pinpoint Test 22: Shift Concerns: Soft / Slipping 1-2 Only (Automatic)

Soft/Slipping Shift 2-3,

See AUTOMATIC TRANSMISSION PINPOINT TEST 23: SHIFT CONCERNS: SOFT / SLIPPING 2- 3 ONLY (AUTOMATIC). Pinpoint Test 23: Shift Concerns: Soft / Slipping 2- 3 Only (Automatic)

Soft/Slipping Shift 3-4,

See AUTOMATIC TRANSMISSION PINPOINT TEST 24: SHIFT CONCERNS: SOFT / SLIPPING 3-4 ONLY (AUTOMATIC). Pinpoint Test 24: Shift Concerns: Soft / Slipping 3-4 Only (Automatic)

Soft/Slipping Shift 4-3,

See AUTOMATIC TRANSMISSION PINPOINT TEST 25: SHIFT CONCERNS: SOFT / SLIPPING 4-3 DOWNSHIFTS. Pinpoint Test 25: Shift Concerns: Soft / Slipping 4-3 Downshifts

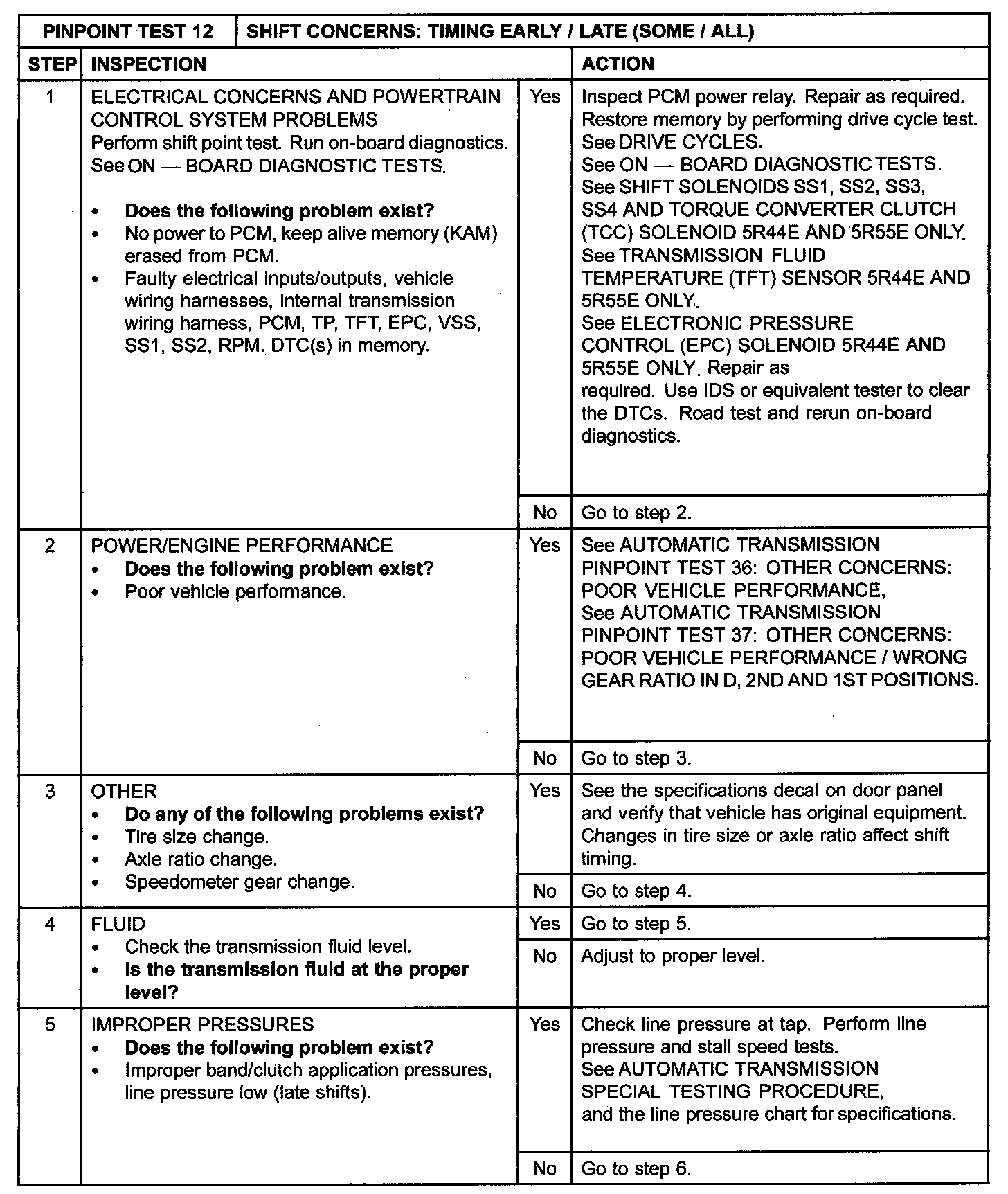

Step 1-Step 5:

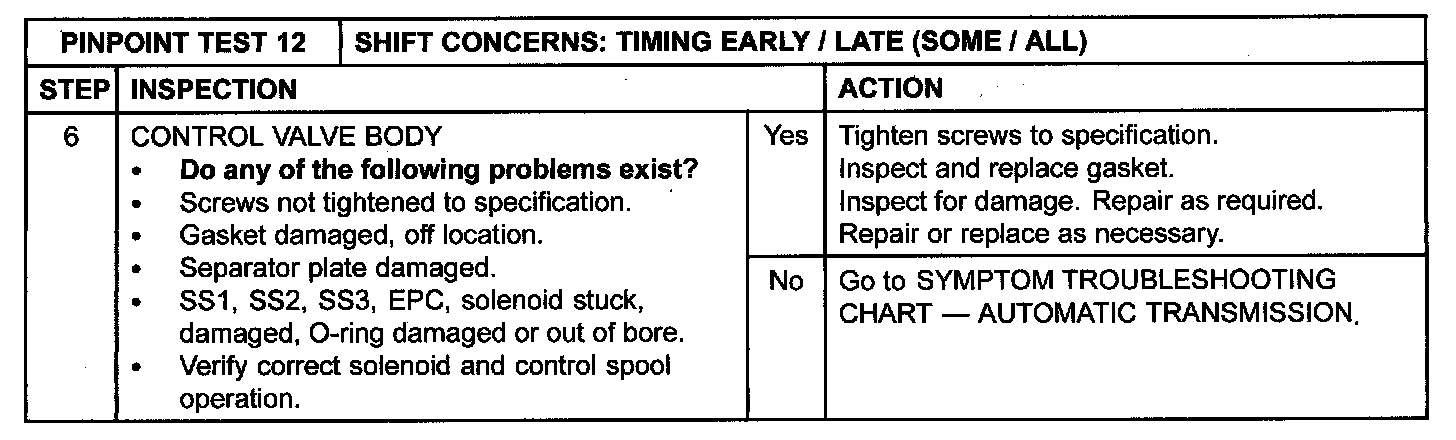

Step 6:
