Limited Slip Differential Bench Torque Test

LIMITED SLIP DIFFERENTIAL BENCH TORQUE TEST

1. Check the torque required to rotate one differential side gear.

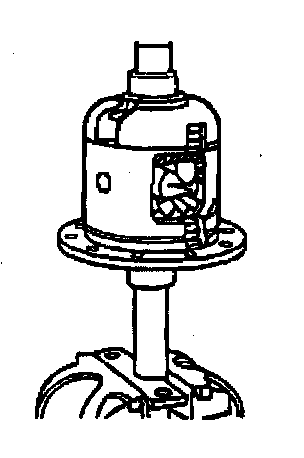

- Mount the differential case and Torque Tool SST 205-022 or equivalent in a vise.
- The initial minimum break-away torque, if original clutch plates are used, must be within specification. The minimum rotating torque required to keep the differential side gear turning with new clutch plates may vary.
