Pivot Arm

PIVOT ARM REMOVAL / INSTALLATION

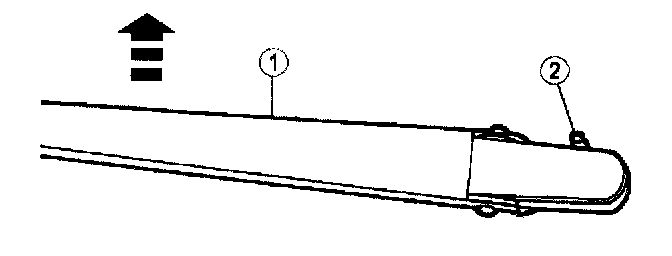

1. Pull up on the pivot arm (1).
2. Pull out on the retainer tabs (2) and remove pivot arm.
3. Install in reverse order of removal.
