Drive Belt: Service and Repair
DRIVE BELT REMOVAL / INSTALLATION - 4.0L 1.
Remove the air cleaner outlet tube.
2.
Remove the
drive belt.

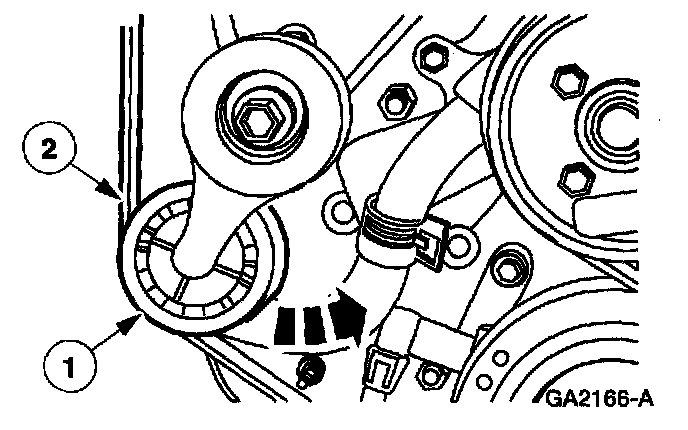

1
Rotate the drive belt tensioner counterclockwise.
2
Remove the
drive belt.
3.
To install, reverse the removal procedure.
